MPI™ MAB Series Electric Actuator - 24 VDC
MPI™ MAB Series Electric Actuator - 24 VDC
SKU:VAL-c8a1df
Enhance valve operations with the MPI™ MAB Series Electric Actuator. CE & CSA approved, designed for automated operation and monitoring.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
MPI™ MAB Series Electric Actuator - 24 VDC
$349.99
Quantity: 1
Claim Your Seller Account
MPI™ MAB Series Electric Actuator - 24 VDC
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance valve operations with the MPI™ MAB Series Electric Actuator featuring a durable powder-coated aluminum housing. This 24 VDC electric actuator, with an operating temperature range of -4oF to 158oF, ensures reliable performance in diverse environments. Certified with CE, CSA, and ATEX approvals, it offers automated operation and monitoring, making it ideal for laboratories, chemical research, and more.

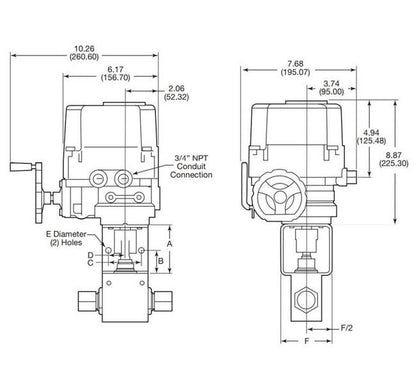

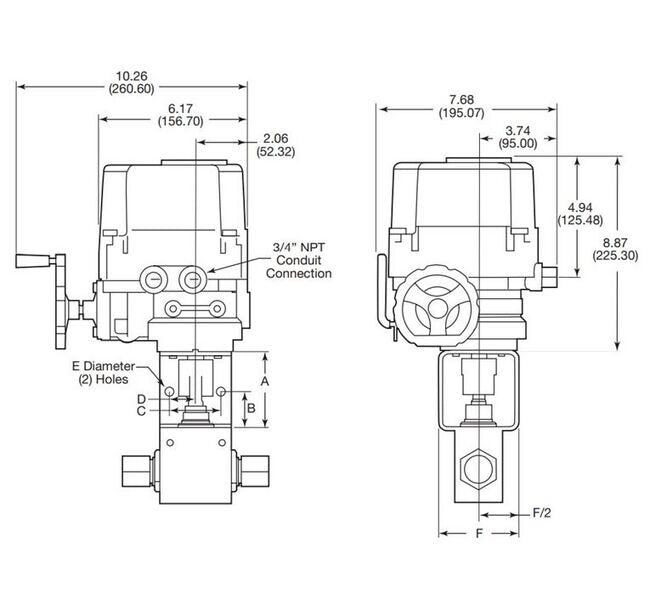

Product Specifications
Dimensions A
2.50 in
Dimensions Actuator Height
8.87 in
Dimensions Actuator Length
10.26 in
Dimensions Actuator Width
7.68 in
Dimensions B
1.25 in
Dimensions C
1.00 in
Dimensions D
.50 in
Dimensions E
.28 in
Dimensions F
2.50 in
Dimensions No Load Time Openclose
7 sec
Dimensions Voltage
24 DC V
Specifications Applications
LaboratoriesPilot PlantsTest StandsWater Blasting Pumping UnitsControl PanelsChemical ResearchHigh Volume Chemical Injection Skids
Specifications Features
Interface with control systems for automated operation and monitoring120 & 220 VAC, 50/60 Hz standard24VDCATEX Flameproof, Explosion Proof options availableCE mark available
