MPI™ MAB Series Electric Actuator - 240 VAC, Explosion Proof
MPI™ MAB Series Electric Actuator - 240 VAC, Explosion Proof
SKU:VAL-e9b90b
Reliable MPI™ MAB Series Electric Actuator for valve automation. CE & CSA approved, ATEX compliant, suitable for various applications.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
MPI™ MAB Series Electric Actuator - 240 VAC, Explosion Proof
$349.99
Quantity: 1
Claim Your Seller Account
MPI™ MAB Series Electric Actuator - 240 VAC, Explosion Proof
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MPI™ MAB Series Electric Actuator is a reliable choice for valve automation, featuring a robust powder-coated aluminum housing for durability in harsh environments. This 240 VAC actuator offers a wide temperature range from -4oF to 158oF and is CE & CSA approved, ensuring safety and quality. With a manual override option and ATEX approval, this actuator is designed to comply with NEMA 7 Explosion Proof standards. It interfaces seamlessly with control systems, making it ideal for applications in laboratories, chemical research, control panels, and more.
Product Specifications

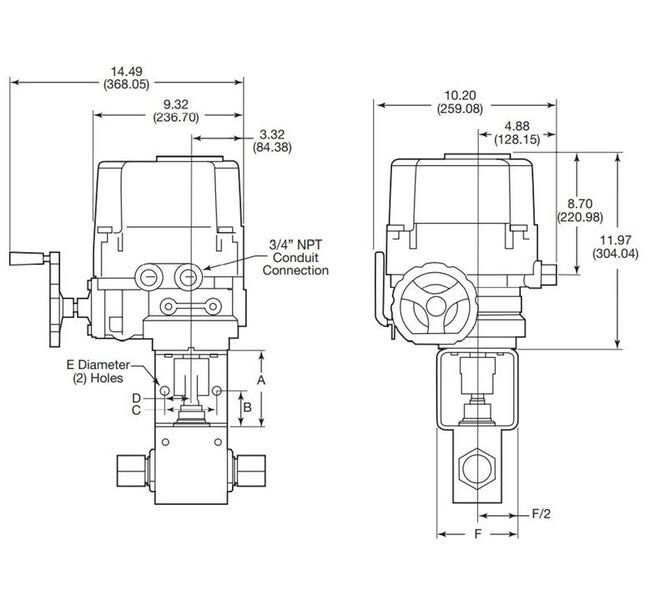

Dimensions A
5.00 in
Dimensions Actuator Height
11.97 in
Dimensions Actuator Length
11.49 in
Dimensions Actuator Width
10.2 in
Dimensions B
2.50 in
Dimensions C
3.25 in
Dimensions D
1.63 in
Dimensions E
.53 in
Dimensions F
5.00 in
Dimensions No Load Time Openclose
8.5 sec
Dimensions Voltage
240 AC V
Specifications Applications
LaboratoriesPilot PlantsTest StandsWater Blasting Pumping UnitsControl PanelsChemical ResearchHigh Volume Chemical Injection Skids
Specifications Features
Interface with control systems for automated operation and monitoring120 & 220 VAC, 50/60 Hz standard24VDCATEX Flameproof, Explosion Proof options availableCE mark available
