MPI™ MAB Series Electric Actuator - 240VAC
MPI™ MAB Series Electric Actuator - 240VAC
SKU:VAL-dc7acb
Robust MPI™ MAB Series Electric Actuator - 240VAC for automated valve operation in diverse applications.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
MPI™ MAB Series Electric Actuator - 240VAC
$399.99
Quantity: 1
Claim Your Seller Account
MPI™ MAB Series Electric Actuator - 240VAC
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MPI™ MAB Series Electric Actuator is a versatile solution for automated valve operation, offering a wide operating temperature range of 0°F to 160°F (-18°C to 71°C). With a powder-coated aluminum housing and NEMA 4 and 4x certifications from CE and CSA, this actuator ensures durability and reliability in diverse environments. Equipped with a manual override and 1/2" NPT female conduit connection, it seamlessly integrates with control systems for automated control and monitoring. Ideal for various applications including laboratories, pilot plants, and chemical research facilities, the actuator provides quick and precise operation with a 5-second open/close time. Explore optional ATEX Flameproof and Explosion Proof configurations for enhanced safety measures.
Product Specifications

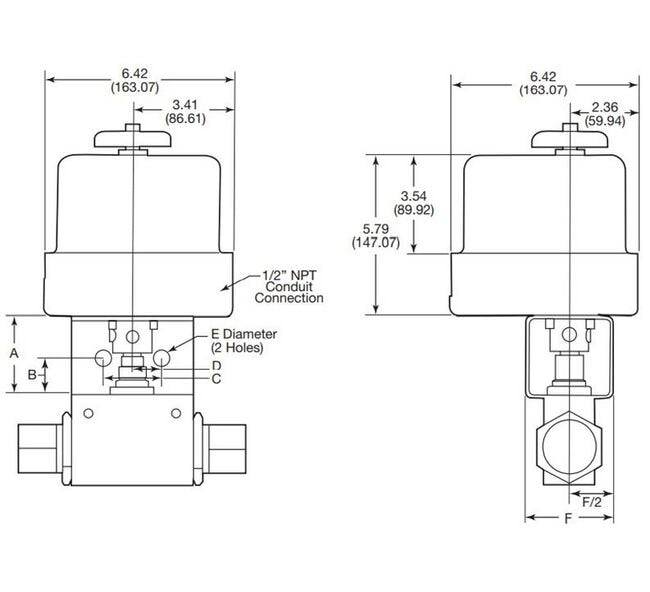

Dimensions A
3.00 in
Dimensions Actuator Height
5.79 in
Dimensions Actuator Length
6.42 in
Dimensions Actuator Width
6.42 in
Dimensions B
1.50 in
Dimensions C
2.00 in
Dimensions D
1.00 in
Dimensions E
.56 in
Dimensions F
3.00 in
Dimensions No Load Time Openclose
5 sec
Dimensions Voltage
240 AC V
Specifications Applications
LaboratoriesPilot PlantsTest StandsWater Blasting Pumping UnitsControl PanelsChemical ResearchHigh Volume Chemical Injection Skids
Specifications Features
Interface with control systems for automated operation and monitoring120 & 220 VAC, 50/60 Hz standard24VDCATEX Flameproof, Explosion Proof options availableCE mark available
