MPI™ MAB Series Electric Actuator - 240VAC, Explosion Proof
MPI™ MAB Series Electric Actuator - 240VAC, Explosion Proof
SKU:VAL-ca12ec
Reliable MPI™ MAB Series Electric Actuator for precise valve automation in challenging environments. CE & CSA approved, IP68 watertight, ATEX & NEMA 7 compliant.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
MPI™ MAB Series Electric Actuator - 240VAC, Explosion Proof
$399.99
Quantity: 1
Claim Your Seller Account
MPI™ MAB Series Electric Actuator - 240VAC, Explosion Proof
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MPI™ MAB Series Electric Actuator is designed for precise and reliable valve automation in demanding environments. Operating between -4oF to 158oF, this actuator features a powder-coated aluminum housing that is CE and CSA approved. It offers a 3/4" NPT female conduit connection with an explosion-proof enclosure II 2 G, EEx-d IIB T4, IP67, ATEX approval, making it compliant with NEMA 7 Explosion Proof standards. With a watertight enclosure (IP68 10M 72HR) and manual override, this actuator is ideal for critical applications in laboratories, chemical research, and industrial settings.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

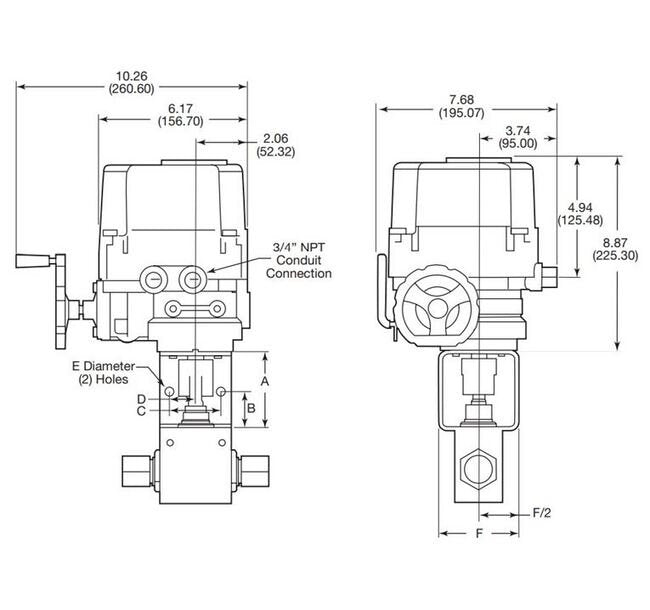

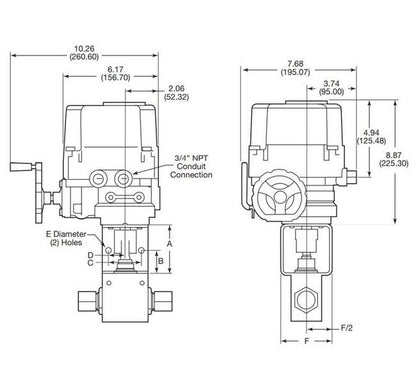

Dimensions A
3.00 in
Dimensions Actuator Height
8.87 in
Dimensions Actuator Length
10.26 in
Dimensions Actuator Width
7.68 in
Dimensions B
1.50 in
Dimensions C
1.50 in
Dimensions D
.75 in
Dimensions E
.34 in
Dimensions F
3.00 in
Dimensions No Load Time Openclose
7 sec
Dimensions Voltage
240 AC V
Specifications Applications
LaboratoriesPilot PlantsTest StandsWater Blasting Pumping UnitsControl PanelsChemical ResearchHigh Volume Chemical Injection Skids
Specifications Features
Interface with control systems for automated operation and monitoring120 & 220 VAC, 50/60 Hz standard24VDCATEX Flameproof, Explosion Proof options availableCE mark available
