MPI™ MAB Series Electric Actuator 240VAC - Valve Automation
MPI™ MAB Series Electric Actuator 240VAC - Valve Automation
SKU:VAL-170f9b
Precision electric actuator for reliable valve automation in various applications. CE & CSA approved, manual override, suitable for NEMA 4 and 4x. Ideal for laboratories, pilot plants, chemical research, and more.
Regular price
$229.99
Regular price
Sale price
$229.99
Unit price
per
Initiate Order
MPI™ MAB Series Electric Actuator 240VAC - Valve Automation
$229.99
Quantity: 1
Claim Your Seller Account
MPI™ MAB Series Electric Actuator 240VAC - Valve Automation
$229.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MPI™ MAB Series Electric Actuator offers reliable valve automation for a range of applications. Operating with precision at temperatures from 0oF to 160oF, this actuator is housed in powder-coated aluminum, approved for NEMA 4 and 4x. With a manual override and 1/2' NPT female conduit connection, it ensures seamless operation. Interface with control systems for automated operation and monitoring, with options for 120 & 220 VAC, 50/60 Hz, and ATEX Flameproof, Explosion Proof variants. Ideal for laboratories, pilot plants, chemical research, and more, this actuator meets industry standards for quality and performance.
Ready to Grow Without Cash Flow Constraints?

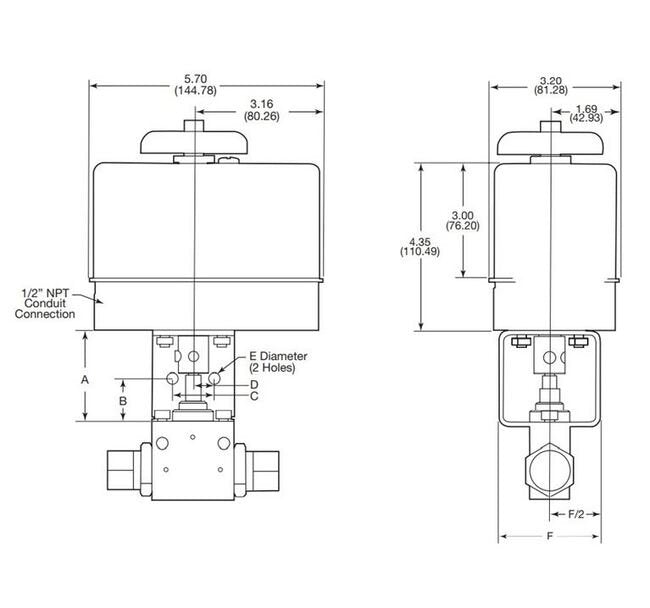

Product Specifications
Dimensions A
3.00 in
Dimensions Actuator Height
4.35 in
Dimensions Actuator Length
5.70 in
Dimensions Actuator Width
3.20 in
Dimensions B
1.50 in
Dimensions C
1.50 in
Dimensions D
.75 in
Dimensions E
.34 in
Dimensions F
3.00 in
Dimensions No Load Time Openclose
7 sec
Dimensions Voltage
240 AC V
Specifications Applications
LaboratoriesPilot PlantsTest StandsWater Blasting Pumping UnitsControl PanelsChemical ResearchHigh Volume Chemical Injection Skids
Specifications Features
Interface with control systems for automated operation and monitoring120 & 220 VAC, 50/60 Hz standard24VDCATEX Flameproof, Explosion Proof options availableCE mark available
