MPI™ MAB Series Electric Actuator - 24VDC
MPI™ MAB Series Electric Actuator - 24VDC
SKU:VAL-61ae78
Powerful MPI™ MAB Series Electric Actuator for precise valve control in varied applications. CE approved, explosion-proof design.
Regular price
$279.99
Regular price
Sale price
$279.99
Unit price
per
Initiate Order
MPI™ MAB Series Electric Actuator - 24VDC
$279.99
Quantity: 1
Claim Your Seller Account
MPI™ MAB Series Electric Actuator - 24VDC
$279.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your valve control with the MPI™ MAB Series Electric Actuator. This rugged actuator operates from -4oF to 158oF, with a powder-coated aluminum housing and CE & CSA approvals. It features a manual override, 3/4" NPT conduit connection, and explosion-proof enclosure for reliable performance in challenging environments. Interface with control systems for automated operation, offering versatility for various applications including laboratories, pilot plants, and chemical research. Compliant with CE mark and designed to meet industry standards for safety and efficiency.

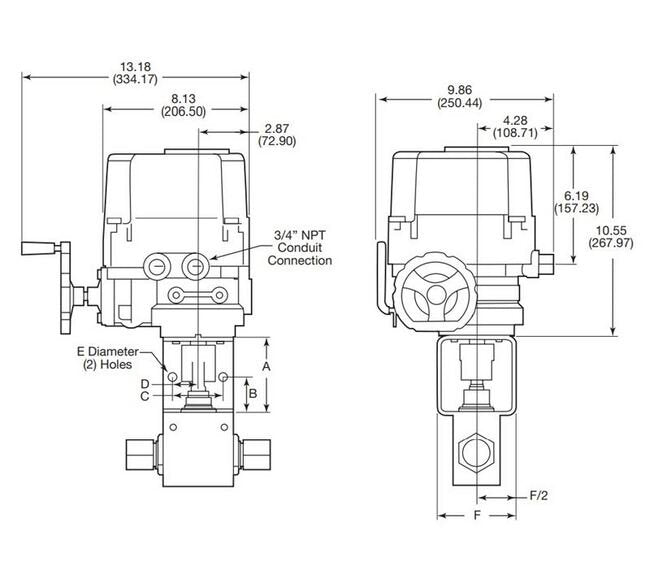

Product Specifications
Dimensions A
3.00 in
Dimensions Actuator Height
10.55 in
Dimensions Actuator Length
13.18 in
Dimensions Actuator Width
9.86 in
Dimensions B
1.50 in
Dimensions C
2.00 in
Dimensions D
1.00 in
Dimensions E
.56 in
Dimensions F
3.00 in
Dimensions No Load Time Openclose
7 sec
Dimensions Voltage
24 DC V
Specifications Applications
LaboratoriesPilot PlantsTest StandsWater Blasting Pumping UnitsControl PanelsChemical ResearchHigh Volume Chemical Injection Skids
Specifications Features
Interface with control systems for automated operation and monitoring120 & 220 VAC, 50/60 Hz standard24VDCATEX Flameproof, Explosion Proof options availableCE mark available
