MPI™ MAB Series Electric Actuator - 24VDC
MPI™ MAB Series Electric Actuator - 24VDC
SKU:VAL-7bb296
Reliable MPI™ MAB Series Electric Actuator - 24VDC for precise valve control in hazardous environments. Perfect for labs, chemical research, and more.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
MPI™ MAB Series Electric Actuator - 24VDC
$289.99
Quantity: 1
Claim Your Seller Account
MPI™ MAB Series Electric Actuator - 24VDC
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MPI™ MAB Series Electric Actuator offers reliable, precise valve control for a range of applications. Operating between -4oF to 158oF (-20oC to 70oC), this actuator features a powder-coated aluminum housing, CE & CSA approval, and an explosion-proof enclosure for hazardous environments. With a 3/4" NPT female conduit connection and NEMA 7 Explosion Proof compliance, it ensures safe and efficient operation. Seamlessly interface with control systems, with options for ATEX Flameproof and Explosion Proof configurations. Ideal for laboratories, chemical research, and other industrial settings requiring automated valve operation.

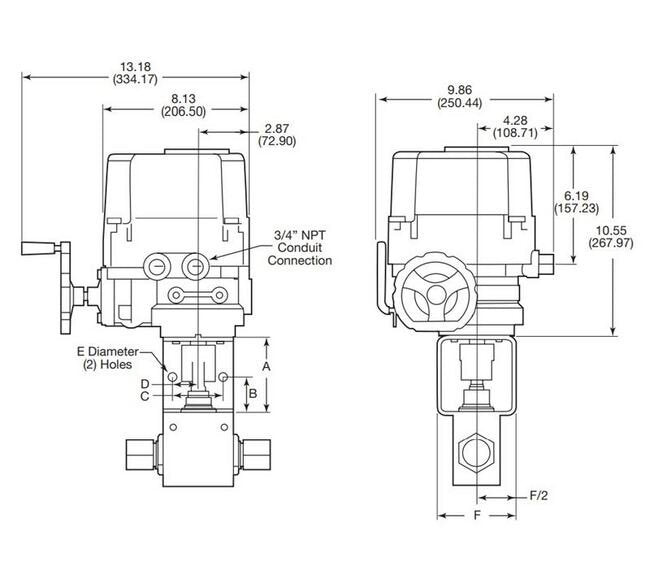

Product Specifications
Dimensions A
3.00 in
Dimensions Actuator Height
10.55 in
Dimensions Actuator Length
13.18 in
Dimensions Actuator Width
9.86 in
Dimensions B
1.50 in
Dimensions C
2.00 in
Dimensions D
1.00 in
Dimensions E
.53 in
Dimensions F
3.00 in
Dimensions No Load Time Openclose
7 sec
Dimensions Voltage
24 DC V
Specifications Applications
LaboratoriesPilot PlantsTest StandsWater Blasting Pumping UnitsControl PanelsChemical ResearchHigh Volume Chemical Injection Skids
Specifications Features
Interface with control systems for automated operation and monitoring120 & 220 VAC, 50/60 Hz standard24VDCATEX Flameproof, Explosion Proof options availableCE mark available
