The MPI™ MAB Series Electric Actuator offers precise and reliable operation in a wide temperature range from -4oF to 158oF. With a powder-coated aluminum housing and CE & CSA approvals, this actuator ensures durability and safety. It features a 3/4" NPT female conduit connection and an explosion-proof enclosure, making it ideal for hazardous environments. Designed to comply with NEMA 7 Explosion Proof and IP68 10M 72HR standards, it guarantees watertight performance. This actuator interfaces seamlessly with control systems for automated operation, making it suitable for various applications like laboratories, pilot plants, and chemical research facilities.
Product Specifications

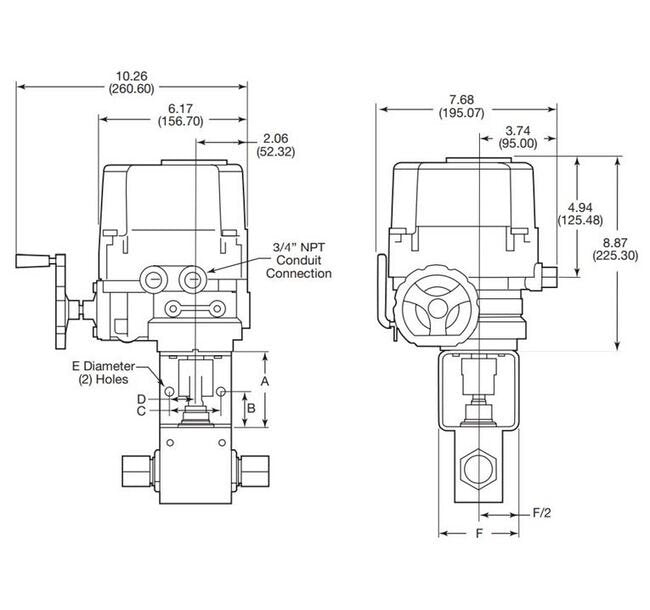

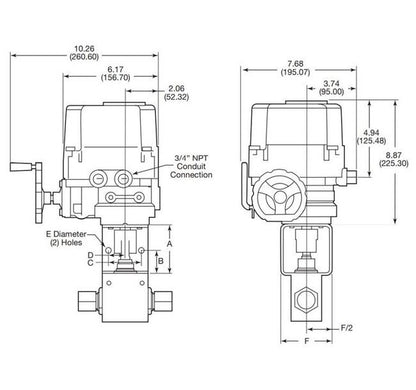

Dimensions A
3.00 in
Dimensions Actuator Height
8.87 in
Dimensions Actuator Length
10.26 in
Dimensions Actuator Width
7.68 in
Dimensions B
1.50 in
Dimensions C
1.00 in
Dimensions D
.50 in
Dimensions E
.28 in
Dimensions F
3.00 in
Dimensions No Load Time Openclose
7 sec
Dimensions Voltage
24 DC V
Specifications Applications
LaboratoriesPilot PlantsTest StandsWater Blasting Pumping UnitsControl PanelsChemical ResearchHigh Volume Chemical Injection Skids
Specifications Features
Interface with control systems for automated operation and monitoring120 & 220 VAC, 50/60 Hz standard24VDCATEX Flameproof, Explosion Proof options availableCE mark available
