MPI™ MAB Series Electric Actuator
MPI™ MAB Series Electric Actuator
SKU:VAL-4de05f
MPI™ MAB Series Electric Actuator - High-performance, durable, and CE/CSA approved for NEMA 4 & 4x. Ideal for industrial automation.
Regular price
$269.99
Regular price
Sale price
$269.99
Unit price
per
Initiate Order
MPI™ MAB Series Electric Actuator
$269.99
Quantity: 1
Claim Your Seller Account
MPI™ MAB Series Electric Actuator
$269.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MPI™ MAB Series Electric Actuator is a high-performance device designed for precision control in various industrial applications. Operating at temperatures ranging from 0oF to 160oF (-18oC to 71oC), this actuator features a powder-coated aluminum housing, providing durability and protection. It is CE and CSA approved for NEMA 4 and 4x standards, ensuring reliable performance in challenging environments. With a manual override and 1/2" NPT female conduit connection, this actuator offers flexibility and ease of installation. Interface with control systems for automated operation and monitoring, making it ideal for laboratories, pilot plants, chemical research, and more.

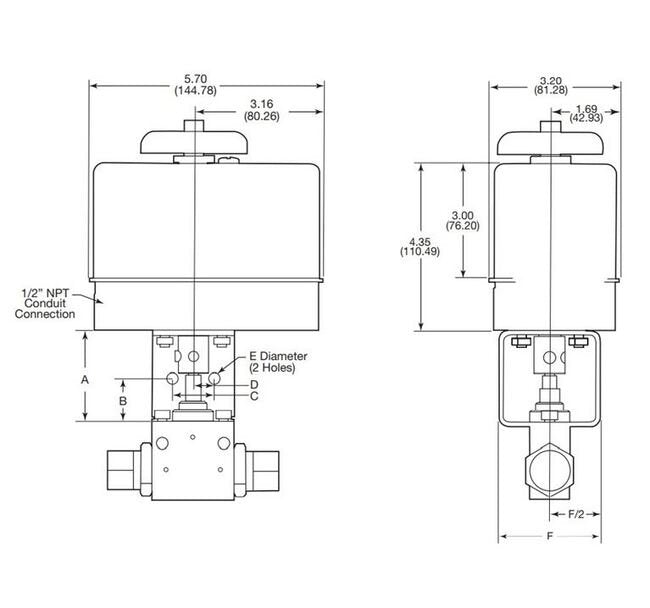

Product Specifications
Dimensions A
3.00 in
Dimensions Actuator Height
4.35 in
Dimensions Actuator Length
5.70 in
Dimensions Actuator Width
3.20 in
Dimensions B
1.50 in
Dimensions C
1.00 in
Dimensions D
.50 in
Dimensions E
.28 in
Dimensions F
3.00 in
Dimensions No Load Time Openclose
3 sec
Dimensions Voltage
24 DC V
Specifications Applications
LaboratoriesPilot PlantsTest StandsWater Blasting Pumping UnitsControl PanelsChemical ResearchHigh Volume Chemical Injection Skids
Specifications Features
Interface with control systems for automated operation and monitoring120 & 220 VAC, 50/60 Hz standard24VDCATEX Flameproof, Explosion Proof options availableCE mark available
