MPI™ MAB Series Electric Actuator
MPI™ MAB Series Electric Actuator
SKU:VAL-3ddf83
MPI™ MAB Series Electric Actuator - High-performance electric actuator for valves, CE & CSA approved, suitable for industrial automation.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
MPI™ MAB Series Electric Actuator
$349.99
Quantity: 1
Claim Your Seller Account
MPI™ MAB Series Electric Actuator
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MPI™ MAB Series Electric Actuator is a high-performance solution for automating ball valves in various industrial applications. Operating at temperatures ranging from 0°F to 160°F (-18°C to 71°C), this actuator features a powder-coated aluminum housing and is CE & CSA approved for NEMA 4 and 4x ratings. With a 1/2" NPT female conduit connection and a manual override, this actuator provides seamless integration with control systems for automated operation and monitoring. Suitable for diverse settings like laboratories, pilot plants, and chemical research facilities, it offers options for ATEX Flameproof and Explosion Proof capabilities. Trust in the reliability and precision of the MPI™ MAB Series Electric Actuator for your critical operations.
Product Specifications

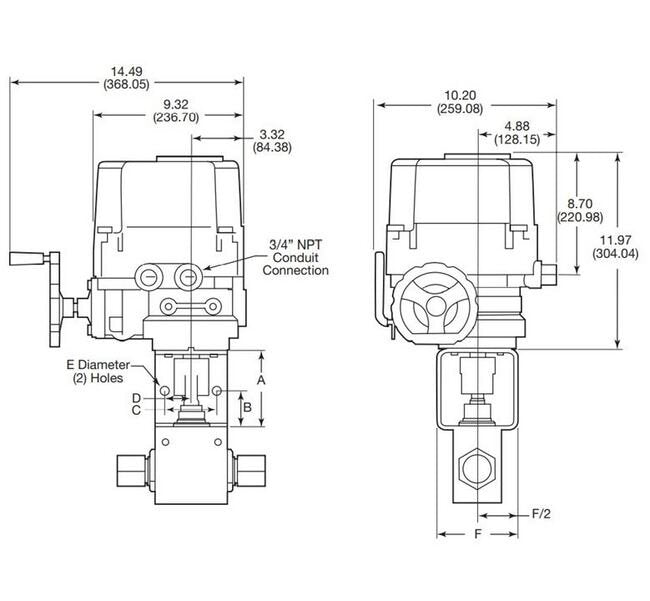

Dimensions A
5.00 in
Dimensions Actuator Height
11.97 in
Dimensions Actuator Length
11.49 in
Dimensions Actuator Width
10.2 in
Dimensions B
2.50 in
Dimensions C
3.25 in
Dimensions D
1.63 in
Dimensions E
.53 in
Dimensions F
5.00 in
Dimensions No Load Time Openclose
10 sec
Dimensions Voltage
120 AC V
Specifications Applications
LaboratoriesPilot PlantsTest StandsWater Blasting Pumping UnitsControl PanelsChemical ResearchHigh Volume Chemical Injection Skids
Specifications Features
Interface with control systems for automated operation and monitoring120 & 220 VAC, 50/60 Hz standard24VDCATEX Flameproof, Explosion Proof options availableCE mark available
