MPI™ MAB Series Electric Actuator - Explosion Proof
MPI™ MAB Series Electric Actuator - Explosion Proof
SKU:VAL-f4f180
High-performance MPI™ MAB Series Electric Actuator with explosion-proof design, ideal for industrial automation.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
MPI™ MAB Series Electric Actuator - Explosion Proof
$399.99
Quantity: 1
Claim Your Seller Account
MPI™ MAB Series Electric Actuator - Explosion Proof
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MPI™ MAB Series Electric Actuator is a high-performance solution for precise valve control in demanding environments. With an operating temperature ranging from -4°F to 158°F (-20°C to 70°C), this actuator boasts a powder-coated aluminum housing for durability. It is CE and CSA approved, featuring a 3/4" NPT female conduit connection and an explosion-proof enclosure. Designed to comply with NEMA 7 Explosion Proof and ATEX standards, it ensures reliable operation in hazardous locations. The actuator's fast response time and interface compatibility with control systems offer seamless automation and monitoring capabilities, making it ideal for laboratories, chemical research facilities, and other industrial applications.

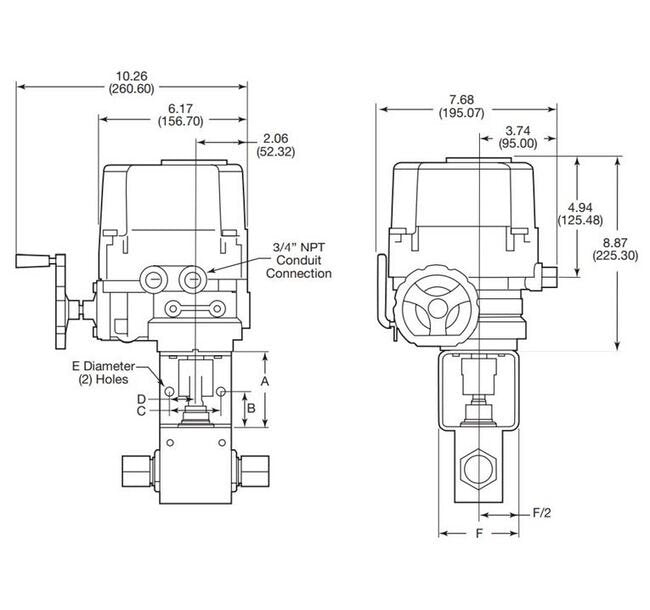

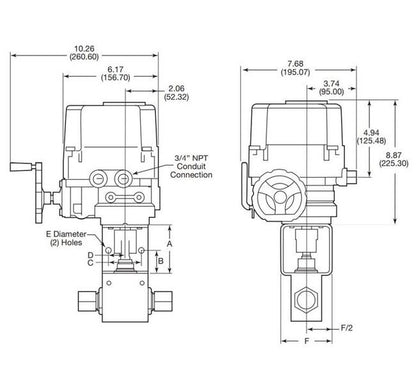

Product Specifications
Dimensions A
3.00 in
Dimensions Actuator Height
8.87 in
Dimensions Actuator Length
10.26 in
Dimensions Actuator Width
7.68 in
Dimensions B
1.50 in
Dimensions C
1.50 in
Dimensions D
.75 in
Dimensions E
.34 in
Dimensions F
3.00 in
Dimensions No Load Time Openclose
7 sec
Dimensions Voltage
24 DC V
Specifications Applications
LaboratoriesPilot PlantsTest StandsWater Blasting Pumping UnitsControl PanelsChemical ResearchHigh Volume Chemical Injection Skids
Specifications Features
Interface with control systems for automated operation and monitoring120 & 220 VAC, 50/60 Hz standard24VDCATEX Flameproof, Explosion Proof options availableCE mark available
