MPI™ MAB Series Electric Actuator for Ball Valves
MPI™ MAB Series Electric Actuator for Ball Valves
SKU:VAL-8988c8
Reliable MPI™ MAB Series Electric Actuator for precise valve control in industrial settings.
Regular price
$259.99
Regular price
Sale price
$259.99
Unit price
per
Initiate Order
MPI™ MAB Series Electric Actuator for Ball Valves
$259.99
Quantity: 1
Claim Your Seller Account
MPI™ MAB Series Electric Actuator for Ball Valves
$259.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MPI™ MAB Series Electric Actuator is a reliable solution for automated operation and monitoring in various industrial applications. With a durable powder-coated aluminum housing and a 24VDC power supply, this actuator ensures smooth and precise valve control. It is CE & CSA approved for NEMA 4 and 4x ratings, offering excellent protection against environmental elements. The manual override feature provides added flexibility, while its compact design and quick 5-second OPEN/CLOSE time make it ideal for time-sensitive processes. This actuator interfaces seamlessly with control systems, making it suitable for laboratories, chemical research facilities, and other critical environments.

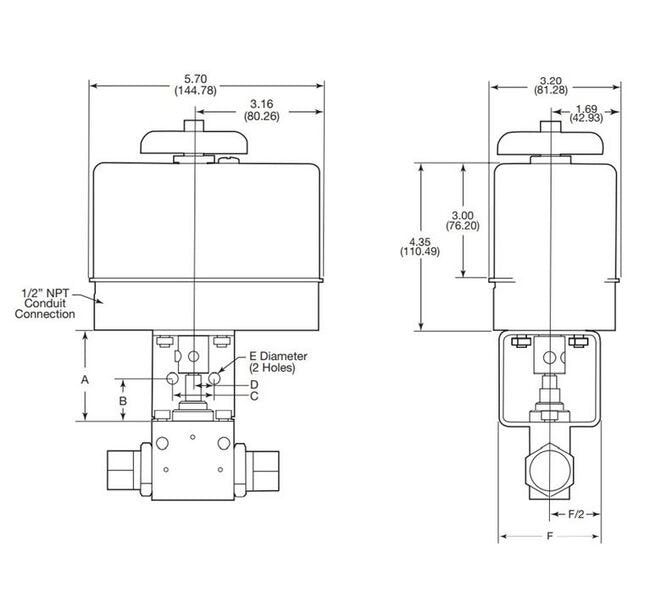

Product Specifications
Dimensions A
3.00 in
Dimensions Actuator Height
4.35 in
Dimensions Actuator Length
5.70 in
Dimensions Actuator Width
3.20 in
Dimensions B
1.50 in
Dimensions C
1.50 in
Dimensions D
.75 in
Dimensions E
.34 in
Dimensions F
3.00 in
Dimensions No Load Time Openclose
5 sec
Dimensions Voltage
24 DC V
Specifications Applications
LaboratoriesPilot PlantsTest StandsWater Blasting Pumping UnitsControl PanelsChemical ResearchHigh Volume Chemical Injection Skids
Specifications Features
Interface with control systems for automated operation and monitoring120 & 220 VAC, 50/60 Hz standard24VDCATEX Flameproof, Explosion Proof options availableCE mark available
