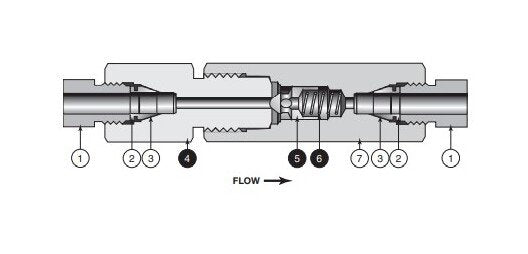

The MPI™ MAC and MACB Check Valves from Parker are meticulously engineered to meet the demanding needs of industrial applications. The MACB series features a robust Ball Check Valve design, ideal for preventing reverse flow with leak-tight shut-off not being crucial. Operating efficiently up to 1000°F, its all-metal components ensure durability. The MAC series, with its O-Ring Check Valve design, provides reliable unidirectional flow and tight shut-off for both liquids and gases. These valves offer dependable performance, with options for specialized temperature ranges and materials, catering to a wide range of industrial settings.
Product Specifications

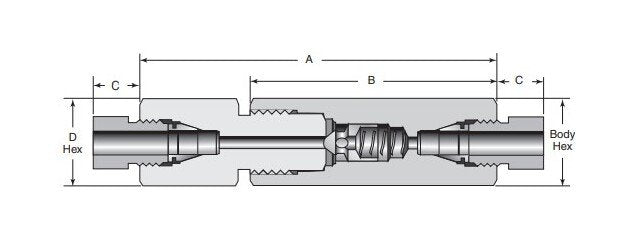

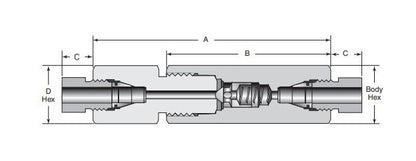

Dimensions A
3.80 in
Dimensions B
2.63 in
Dimensions Body Hex
13/16 in
Dimensions C
.50 in
Dimensions Connection
1/4 MPI™
Dimensions D Hex
13/16 in
Dimensions Orifice
.125 in
Dimensions Pressure
15000 psi | 1035 bar
Dimensions Rated Cv
.28
Dimensions Repair Kits
R4MAC-2507
Dimensions Tubing Od
1/4
Specifications Note
Min. oper. temperature for standard BALL check valves -110°F (-79°C). For low temperature option to -423°F (-252°C) add suffix-LT (Low temperature spring).
