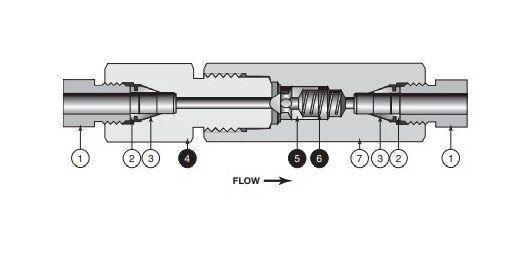

The MPI™ MAC and MACB Check Valves are engineered for high-pressure applications where tight shut-off and unidirectional flow are critical. The MAC series features an O-Ring design for reliable shut-off, while the MACB series with its all-metal components can withstand temperatures up to 1000°F. With a focus on preventing reverse flow and ensuring leak-tight sealing, these valves offer exceptional performance and durability for a wide range of industrial and institutional settings.
Product Specifications

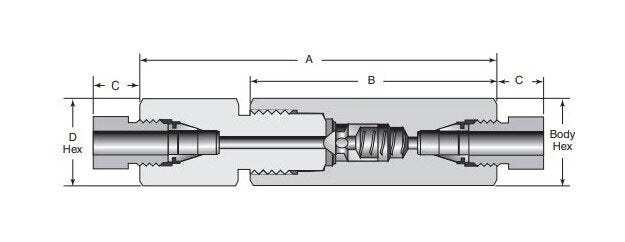

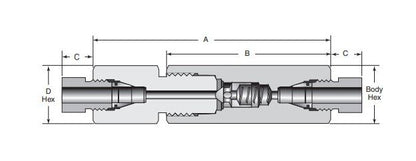

Dimensions A
4.40 in
Dimensions B
3.06 in
Dimensions Body Hex
1 in
Dimensions C
.63 in
Dimensions Connection
3/8 MPI™
Dimensions D Hex
15/16 in
Dimensions Orifice
.219 in
Dimensions Pressure
15000 psi | 1035 bar
Dimensions Rated Cv
.84
Dimensions Repair Kits
R6MAC-2507
Dimensions Tubing Od
3/8
Specifications Note
Min. oper. temperature for standard BALL check valves -110°F (-79°C). For low temperature option to -423°F (-252°C) add suffix-LT (Low temperature spring).
