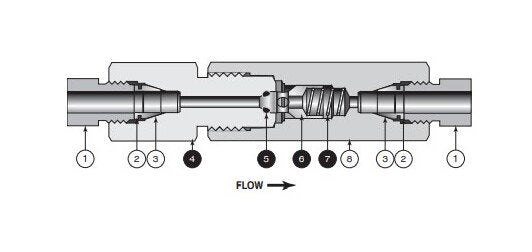

The MPI™ MAC and MACB Check Valves are essential components for preventing reverse flow in high-pressure applications. The MACB series features a Ball Check Valve design ensuring leak-tight shut-off when differential pressure drops below the cracking threshold. Its durable all-metal construction allows for usage up to 1000°F, providing reliability and longevity. On the other hand, the MAC series boasts an O-Ring Check Valve configuration, offering unidirectional flow and tight shut-off for both liquids and gases. With features like in-line seating, minimal pressure drop, and temperature adaptability ranging from -423°F to 1000°F, these valves are ideal for demanding industrial environments.
Product Specifications

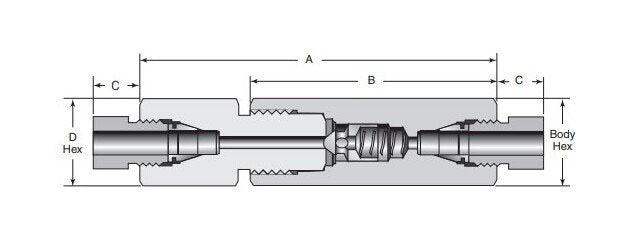

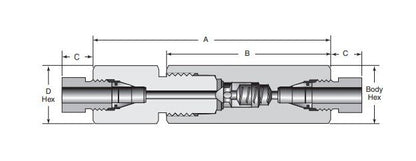

Dimensions A
8.71 in
Dimensions B
6.25 in
Dimensions Body Hex
2 1/8 in
Dimensions C
1.13 in
Dimensions Connection
1 MPI™
Dimensions D Hex
1 7/8 in
Dimensions Orifice
.688 in
Dimensions Pressure
15000 psi | 1035 bar
Dimensions Rated Cv
7.40
Dimensions Repair Kits
R16MACB-2507
Dimensions Tubing Od
1
Specifications Note
Temperature range for standard Fluorocarbon Rubber O-RING check valves is 0°F to 400°F (-18°C to 204°C). For temperatures under 0°F to -423°F use PTFE o-ring (-TO). If under -110°F (-79°C) Low Temperature Spring must be used (-LT option).
