MPI™ MADBN Series Double Block and Bleed Needle Valves
MPI™ MADBN Series Double Block and Bleed Needle Valves
SKU:VAL-e0436a
Discover MPI™ MADBN Series Valves for high-pressure applications. Reliable, durable, and compliant with industry standards.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
MPI™ MADBN Series Double Block and Bleed Needle Valves
$129.99
Quantity: 1
Claim Your Seller Account
MPI™ MADBN Series Double Block and Bleed Needle Valves
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MPI™ MADBN Series Double Block and Bleed Needle Valves are designed for high-pressure applications up to 15000 psi. Featuring a 1/2 MPI™ connection, .093 in orifice, and durable construction, these valves ensure reliable performance. With vent connections at 1/4" NPT and compatibility with 316 SS or 2507 Super Duplex Tubing, the MADBN Series guarantees secure isolation and bleed functions. Ideal for critical systems, these valves meet stringent industry standards for safety and efficiency, making them a top choice for both consumer and institutional buyers.

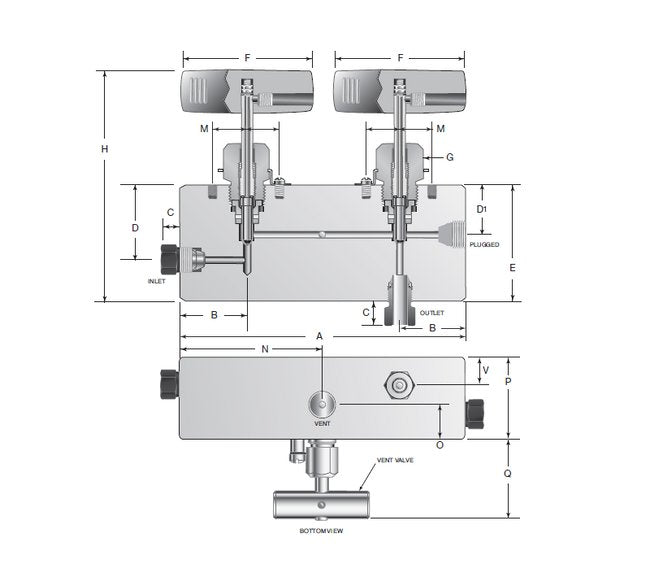

Product Specifications
Dimensions A
7.50 in
Dimensions B
1.50 in
Dimensions C
.69 in
Dimensions Connection
1/2 MPI™
Dimensions D
2.38 in
Dimensions D1
1.75 in
Dimensions E
3.58 in
Dimensions F
4.00 in
Dimensions G
1.00 in
Dimensions H
6.63 in
Dimensions M
.69 in
Dimensions N
3.75 in
Dimensions O
.63 in
Dimensions Orifice
.093 in
Dimensions P
1.50 in
Dimensions Pressure
15000 psi
Dimensions Q
1.47 in
Dimensions V
0.50 in
