MPI™ MAGV Series High-Pressure Gauge Valve with Bleed Function
MPI™ MAGV Series High-Pressure Gauge Valve with Bleed Function
SKU:VAL-b47a87
High-pressure valve set for precision control up to 15000 psi, with configurable bleed function and optional 2507 Super Duplex variant.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
MPI™ MAGV Series High-Pressure Gauge Valve with Bleed Function
$129.99
Quantity: 1
Claim Your Seller Account
MPI™ MAGV Series High-Pressure Gauge Valve with Bleed Function
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

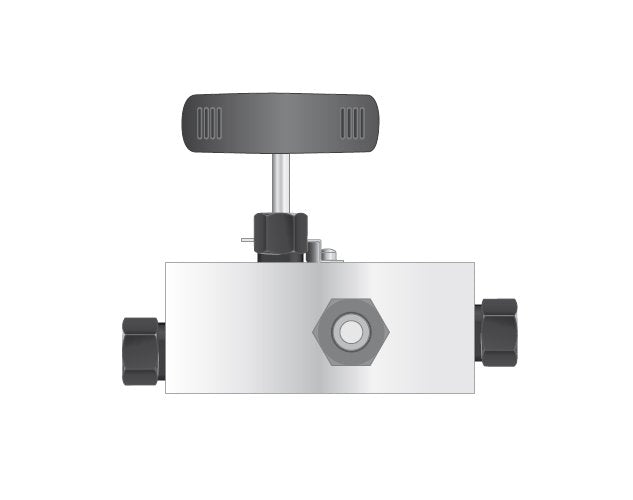

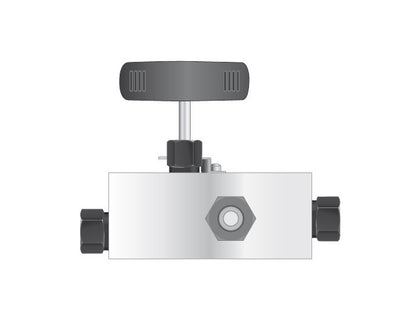

The MPI™ MAGV Series Single Block and Bleed Gauge Valve is a reliable solution designed for high-pressure applications up to 15000 psi. This valve features a precise .125 in orifice, ensuring accurate flow control. With a sturdy construction and dimensions meeting institutional standards, it provides exceptional durability and performance. The bleed valve, configurable in three outlet locations, offers flexibility and convenience. For superior corrosion resistance, opt for the 2507 Super Duplex variant. XF Ferrules are recommended for 3/4" and 1" tubing. Upgrade to the MAGV Series for dependable industrial operations.

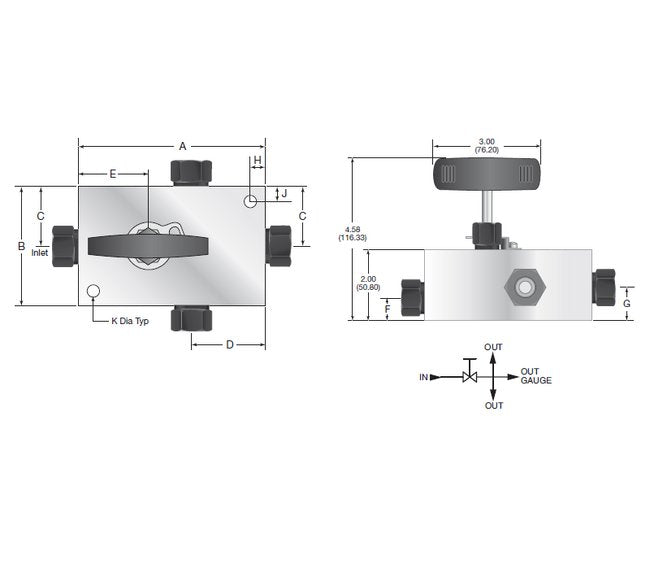

Product Specifications
Dimensions A
4.70 in
Dimensions B
3.00 in
Dimensions C
1.50 in
Dimensions Connection
1/2 MPI™
Dimensions D
1.88 in
Dimensions E
1.75 in
Dimensions F
.65 in
Dimensions G
.94 in
Dimensions H
.38 in
Dimensions J
.38 in
Dimensions K Dia
.28 in
Dimensions Orifice
.125 in
Dimensions Pressure
15000 psi
