MPI™ MAN Series 2-Way Straight Valve - 3/8 MPI™ Connection
MPI™ MAN Series 2-Way Straight Valve - 3/8 MPI™ Connection
SKU:VAL-e66832
Maximize control with the MPI™ MAN Series Valve - 15,000 psi, Dual Ferrule Design, Unmatched Performance
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
MPI™ MAN Series 2-Way Straight Valve - 3/8 MPI™ Connection
$129.99
Quantity: 1
Claim Your Seller Account
MPI™ MAN Series 2-Way Straight Valve - 3/8 MPI™ Connection
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

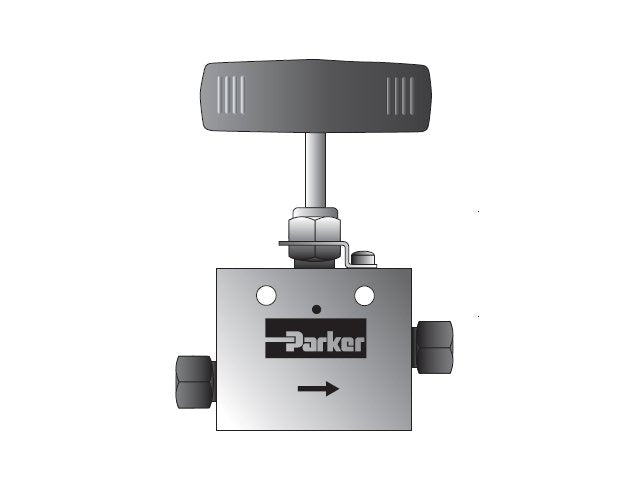

The MPI™ MAN Series 2-Way Straight Valve by Parker is engineered for precise multi-turn control of liquids or gases, offering regulation or shutoff options up to 15,000 psi. With a Double Ferrule connection, it ensures fast, reliable performance in various applications. This valve boasts sturdy construction for MPI™ tube sizes from 1/4" to 1", meeting demanding ASME safety standards and featuring innovative design elements like non-rotating stem, metal-to-metal seating, and advanced temperature resistance. Ideal for industrial settings requiring exceptional durability and tight shut-off capabilities.
Product Specifications

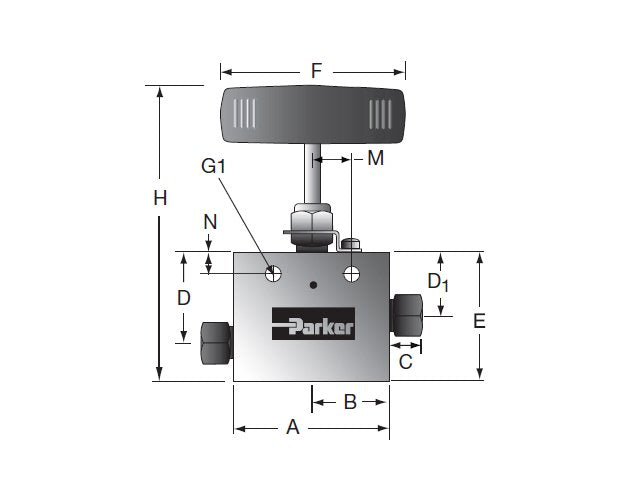

Dimensions A
2.50 in
Dimensions B
1.25 in
Dimensions Block Thickness
1.00 in
Dimensions B Stem Repair Kit
RSM607
Dimensions C
.63 in
Dimensions Connection
3/8 MPI™
Dimensions D
1.63 in
Dimensions D1
1.19 in
Dimensions E
2.13 in
Dimensions F
3.00 in
Dimensions G1
.22 in
Dimensions H
4.60 in
Dimensions M
.63 in
Dimensions N
.38 in
Dimensions Orifice
.219 in
Dimensions Pressure
15000 psi
Dimensions Rated Cv
0.75
Dimensions R Stem Repair Kit
RSM608
Specifications Features
Valve flow capabilities closely match associated tubing bore sizes CW 316 Stainless Steel Material is Standard, 2507 Annealed Super Duplex as option Rising stem/barstock body design Non-rotating stem prevents stem/seat galling Metal-to-metal seating achieves bubble-tight shut-off, longer stem/seat life in abrasive flow, greater durability for repeated on/off cycles, unmatched temperature performance and excellent corrosion resistance Temperature range from -423°F (-252°C) to 1000°F (538°C) Standard PTFE packing provides dependable stem and body sealing from -423°F to 450°F, additional options include PTFE/Glass (25%) for temperatures to 600°F and Graphite Yarn for temperatures to 1000°F Choice of Vee (shutoff) or Regulating Flow Stem Tips Replaceable Seat Option available with Right Angle 2-way body style Optional N-Dura Stem and Seat Coating or Stellite material option for severe service available
Specifications Parker Mpi Connection Benefits
MPI™ Connections are designed for both liquids and gases. They can be used on MPI™ 1/8th Hard tubing, Autoclave Engineers Medium Pressure Tubing, or Thick Wall Instrumentation Tubing in both 316 SS and 2507 Super Duplex materials. Suparcase® Technology creates a Corrosion Resistant Ferrule set for a strong, mechanical hold Double Ferrule design is proven but not interchangeable with standard tube fittings Longer Thread Engagement improves resistance to pressure and load on ferrules Molybdenum Disulfide Coated Gland Nut prevents galling and makes assembly easier.
