MPI™ MAN Series 3-Way/2-Stem Needle Valve - 15,000 psi
MPI™ MAN Series 3-Way/2-Stem Needle Valve - 15,000 psi
SKU:VAL-0cd822
Premium MPI™ MAN Needle Valve - Precision Control up to 15,000 psi
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
MPI™ MAN Series 3-Way/2-Stem Needle Valve - 15,000 psi
$349.99
Quantity: 1
Claim Your Seller Account
MPI™ MAN Series 3-Way/2-Stem Needle Valve - 15,000 psi
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

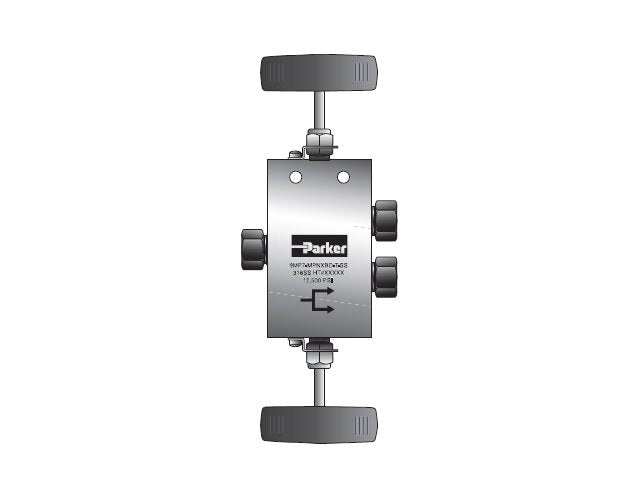

The MPI™ MAN Series 3-Way/2-Stem Needle Valve is expertly engineered to provide precise multi-turn control for liquid or gas media, offering regulation or shutoff options at pressures up to 15,000 psi. With a Double Ferrule connection system ensuring fast and reliable sealing performance, this valve is designed for MPI™ tube sizes from 1/4" to 1". Featuring a rising stem/barstock body design, non-rotating stem to prevent galling, and metal-to-metal seating for bubble-tight shut-off, this valve ensures durability, temperature performance, and corrosion resistance. Compliant with ASME standards, this valve is a reliable choice for demanding industrial applications.
Product Specifications

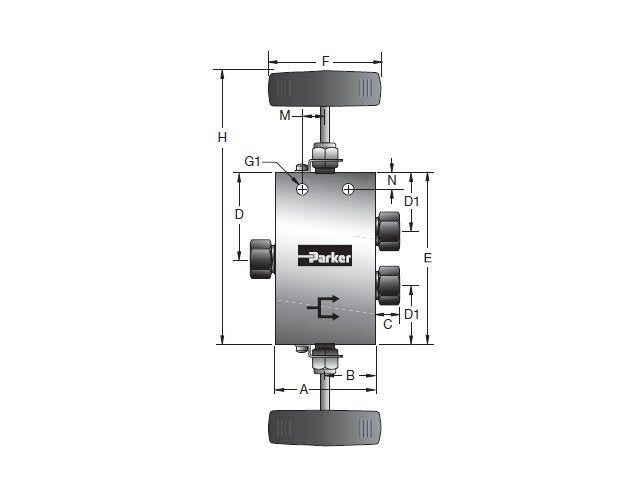

Dimensions A
2.50 in
Dimensions B
1.25 in
Dimensions Block Thickness
1.00 in
Dimensions B Stem Repair Kit
RSM4075
Dimensions C
.50 in
Dimensions Connection
1/4 MPI™
Dimensions D
1.69 in
Dimensions D1
1.19 in
Dimensions E
3.38 in
Dimensions F
3.00 in
Dimensions G1
.22 in
Dimensions H
5.84 in
Dimensions M
.63 in
Dimensions N
.38 in
Dimensions Orifice
.125 in
Dimensions Pressure
15000 psi
Dimensions Rated Cv
0.31
Dimensions R Stem Repair Kit
RSM4085
Specifications Features
Valve flow capabilities closely match associated tubing bore sizes CW 316 Stainless Steel Material is Standard, 2507 Annealed Super Duplex as option Rising stem/barstock body design Non-rotating stem prevents stem/seat galling Metal-to-metal seating achieves bubble-tight shut-off, longer stem/seat life in abrasive flow, greater durability for repeated on/off cycles, unmatched temperature performance and excellent corrosion resistance Temperature range from -423°F (-252°C) to 1000°F (538°C) Standard PTFE packing provides dependable stem and body sealing from -423°F to 450°F, additional options include PTFE/Glass (25%) for temperatures to 600°F and Graphite Yarn for temperatures to 1000°F Choice of Vee (shutoff) or Regulating Flow Stem Tips Replaceable Seat Option available with Right Angle 2-way body style Optional N-Dura Stem and Seat Coating or Stellite material option for severe service available
Specifications Parker Mpi Connection Benefits
MPI™ Connections are designed for both liquids and gases. They can be used on MPI™ 1/8th Hard tubing, Autoclave Engineers Medium Pressure Tubing, or Thick Wall Instrumentation Tubing in both 316 SS and 2507 Super Duplex materials. Suparcase® Technology creates a Corrosion Resistant Ferrule set for a strong, mechanical hold Double Ferrule design is proven but not interchangeable with standard tube fittings Longer Thread Engagement improves resistance to pressure and load on ferrules Molybdenum Disulfide Coated Gland Nut prevents galling and makes assembly easier.
