MPI™ Medium Pressure Tube Elbow - T7EBT7
MPI™ Medium Pressure Tube Elbow - T7EBT7
SKU:FIT-8ed82f
Enhance your medium-pressure systems with the secure and reliable MPI™ Tube Elbow T7EBT7 from Parker Hannifin. ASME compliant and easy to install for a variety of applications.
Regular price
$44.99
Regular price
Sale price
$44.99
Unit price
per
Initiate Order
MPI™ Medium Pressure Tube Elbow - T7EBT7
$44.99
Quantity: 1
Claim Your Seller Account
MPI™ Medium Pressure Tube Elbow - T7EBT7
$44.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

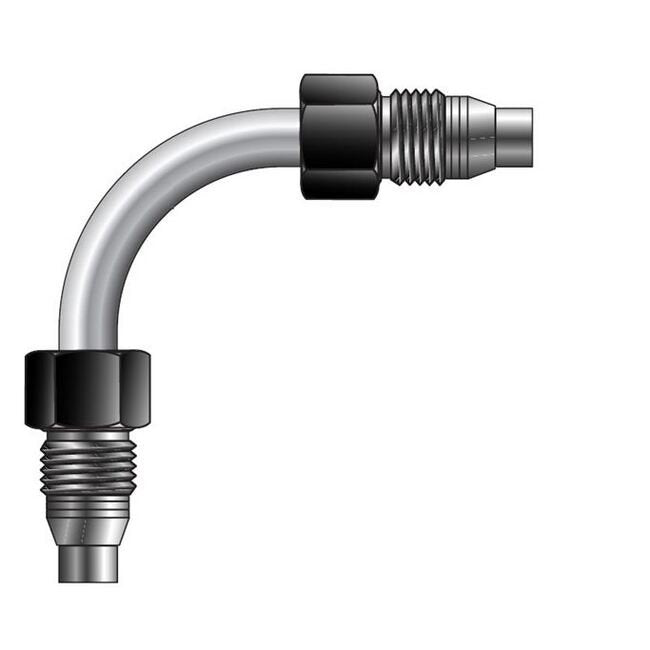

The MPI™ Medium Pressure Tube Elbow T7EBT7 by Parker Hannifin, the original Patent Holder, offers exceptional performance in medium-pressure applications up to 15,000 psi. Engineered with precision, this compression fitting ensures a secure, gas-tight connection, suitable for diverse industries like offshore oil and gas exploration, research labs, and high-pressure facilities. Each MPI™ Fitting comes complete with ferrules and compression gland nut for quick and reliable installation. Benefit from features like corrosion-resistant Parker Suparcase®, molybdenum disulfide-coated nut, and ASME standard compliance for unmatched durability and reliability.
Product Specifications

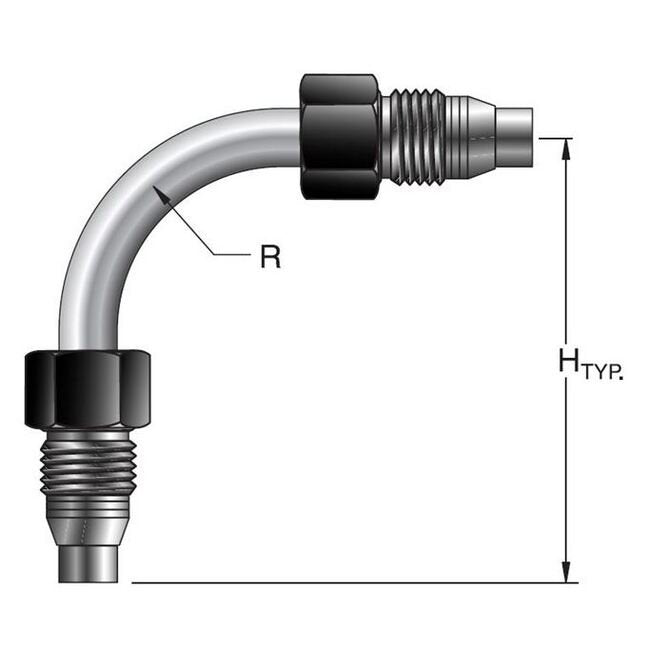

Dimensions Connection Type
MPI™ Tube
Dimensions H
10.00 in
Dimensions R
.75 in
Dimensions Tube Size
1/4
Specifications Assembly
MPI™ Fittings are assembled with standard hand tools up to 3/4" size. 1-1/2 turns past finger tight is all that is needed, 3/4 and 1 inch 316 SS tubing and 3/4 and 1 inch 2507 Tubing must be hydraulically preset. Note: All sizes can be hydraulically preset using the Parker Preset Tooling.
Specifications Dedication To Quality
Our resources and vast product line are available through our worldwide distribution network. For more information regarding our products and services, please contact your authorized Parker Instrumentation Distributor.
Specifications Engineering Standards Used
Parker Hannifin has designed all fittings and valves using the following ASME Standards and associated Safety Factors: ASME B31.1 Power Piping ASME B31.3 Process Piping
Specifications Features
Every MPI™ Fitting has the features shown below:Front ferrule with corrosion-resistant Parker Suparcase® forms a seal between the tube, body and ferrule. It also provides a mechanical hold on the tube.Back ferrule with corrosion-resistant Parker Suparcase® provides a strong mechanical hold on the tube.Longer thread area for improved resistance to pressure and load on the ferrules.Molybdenum disulfide-coated inverted nut helps prevent galling, provides easier assembly, and permits multiple remakes.Long tube-support area improves resistance to vibration and line loads.
Specifications Materials And Identification
Standard MPI™ Fittings and Valves are made of Heat Code Traceable 316 SS or optional 2507 Super Duplex materials. Tubing and fitting materials should be selected based on compatibility with the fluid or gas media. Part numbers for MPI™ Fittings use symbols that identify their style, size, and composition. 2507 material is easily identified by a groove in the gland nut hex.
