MPI™ Tube Elbow - T7EBT7 for Medium Pressure Applications
MPI™ Tube Elbow - T7EBT7 for Medium Pressure Applications
SKU:FIT-e6428a
Secure and gas-tight, the MPI™ Tube Elbow T7EBT7 is a premium compression fitting for pressures up to 15,000 psi. Made with durable materials and featuring Parker Suparcase® ferrules, it ensures reliable connections for diverse applications.
Regular price
$64.99
Regular price
Sale price
$64.99
Unit price
per
Initiate Order
MPI™ Tube Elbow - T7EBT7 for Medium Pressure Applications
$64.99
Quantity: 1
Claim Your Seller Account
MPI™ Tube Elbow - T7EBT7 for Medium Pressure Applications
$64.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

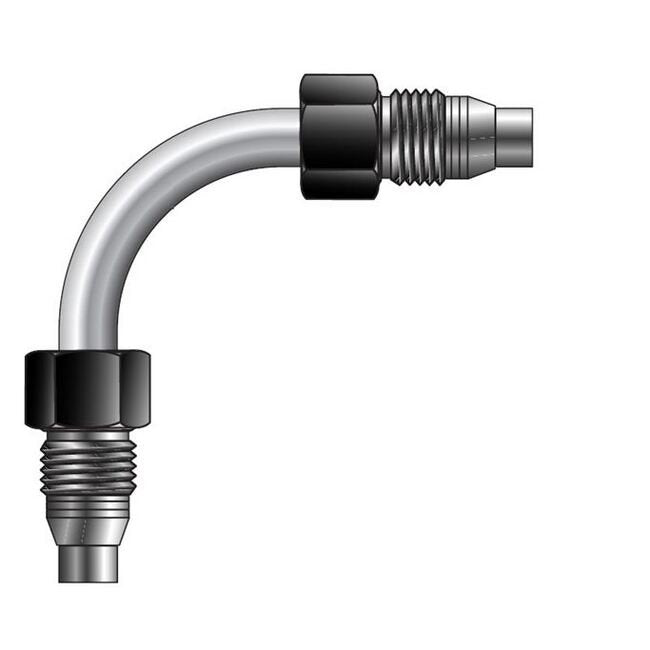

The MPI™ Tube Elbow T7EBT7 is a premium compression fitting connection developed by Parker Hannifin, the original Patent Holder. Designed to ensure secure and gas-tight connections, this elbow is ideal for applications requiring operating pressures up to 15,000 psi (1035 bar). Made of Heat Code Traceable 316 SS or optional 2507 Super Duplex materials, it offers exceptional corrosion resistance. Featuring Parker Suparcase® front and back ferrules, an inverted nut with molybdenum disulfide coating, and a longer thread area, this elbow guarantees a reliable and durable solution for handling liquids, gases, or chemicals in various industries. Compliant with ASME standards, this MPI™ fitting is easy to assemble with standard hand tools, making it a top choice for demanding environments.
Product Specifications

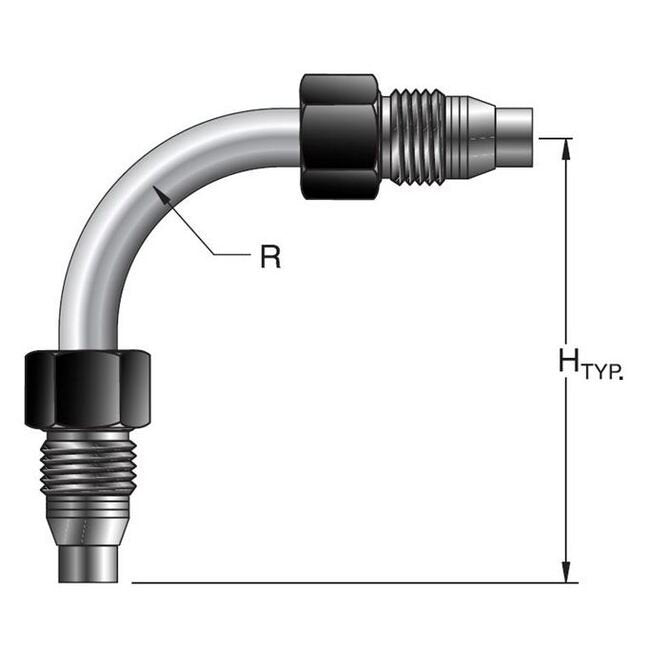

Dimensions Connection Type
MPI™ Tube
Dimensions H
2.91 in
Dimensions R
.75 in
Dimensions Tube Size
1/4
Specifications Assembly
MPI™ Fittings are assembled with standard hand tools up to 3/4" size. 1-1/2 turns past finger tight is all that is needed, 3/4 and 1 inch 316 SS tubing and 3/4 and 1 inch 2507 Tubing must be hydraulically preset. Note: All sizes can be hydraulically preset using the Parker Preset Tooling.
Specifications Dedication To Quality
Our resources and vast product line are available through our worldwide distribution network. For more information regarding our products and services, please contact your authorized Parker Instrumentation Distributor.
Specifications Engineering Standards Used
Parker Hannifin has designed all fittings and valves using the following ASME Standards and associated Safety Factors: ASME B31.1 Power Piping ASME B31.3 Process Piping
Specifications Features
Every MPI™ Fitting has the features shown below:Front ferrule with corrosion-resistant Parker Suparcase® forms a seal between the tube, body and ferrule. It also provides a mechanical hold on the tube.Back ferrule with corrosion-resistant Parker Suparcase® provides a strong mechanical hold on the tube.Longer thread area for improved resistance to pressure and load on the ferrules.Molybdenum disulfide-coated inverted nut helps prevent galling, provides easier assembly, and permits multiple remakes.Long tube-support area improves resistance to vibration and line loads.
Specifications Materials And Identification
Standard MPI™ Fittings and Valves are made of Heat Code Traceable 316 SS or optional 2507 Super Duplex materials. Tubing and fitting materials should be selected based on compatibility with the fluid or gas media. Part numbers for MPI™ Fittings use symbols that identify their style, size, and composition. 2507 material is easily identified by a groove in the gland nut hex.
