Multi-Flex™ 126 Series 8 Inch Rigid Core Inflatable By-Pass Plug
Multi-Flex™ 126 Series 8 Inch Rigid Core Inflatable By-Pass Plug
SKU:POW-621bf6
Versatile 8" Rigid Core Inflatable By-Pass Plug for high-pressure applications, built to last with Ballistic Nylon Reinforced Polyurethane or Polyurethane. Customizable options available.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Multi-Flex™ 126 Series 8 Inch Rigid Core Inflatable By-Pass Plug
$249.99
Quantity: 1
Claim Your Seller Account
Multi-Flex™ 126 Series 8 Inch Rigid Core Inflatable By-Pass Plug
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Multi-Flex™ 126 Series 8 Inch Rigid Core Inflatable By-Pass Plug is designed for high-pressure applications, featuring a durable construction of Ballistic Nylon Reinforced Polyurethane or Polyurethane. With a maximum pipe diameter of 8 inches and a bypass connection in National Pipe Thread (NPT) of 2 F, this plug can withstand up to 50 psig inflation pressure. Its innovative design allows for continuous flow, offering reliability and versatility for various settings. Custom configurations and pressure ratings are available upon request, ensuring precise fit and performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Bore Range Bore Range Adapter
14.00 in | 355.6 mm
Bore Range Bore Range Clutch
12.00 in | 304.8 mm

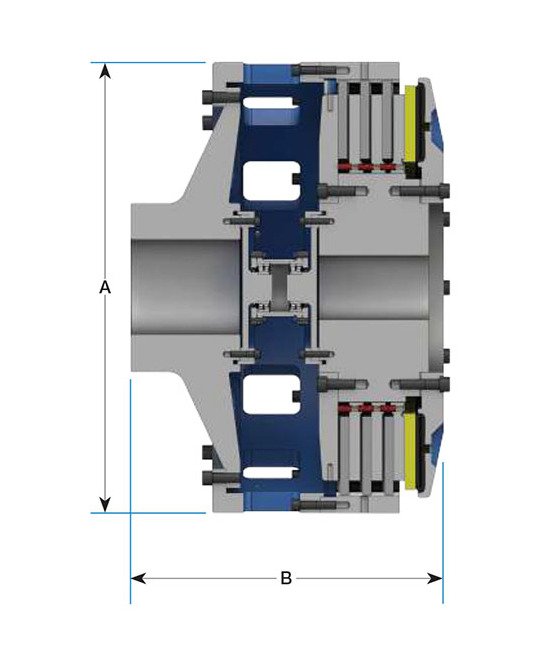

Dimensions Dimension A
56 in | 1422.0 mm

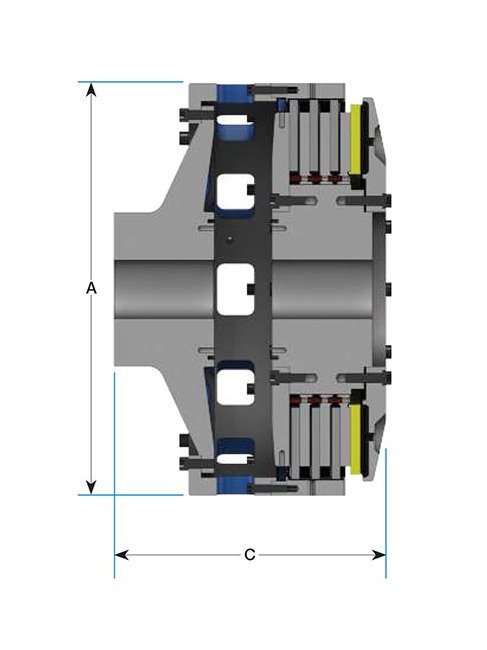

Dimensions Dimension C
29-3/8 in | 746.1 mm
Features Features
Reduces peak power demand for high load startsDisc design provide more torque capacity and lining area than drum style productsSuitable for jogging and inchingAvailable with axial locking deviceQuick-change Driving adapters for serviceability
Maximum Speed Maximum Slip Speed
480 rpm
Maximum Speed Maximum Speed
650 rpm
Note Note
Consult WPT® Application Engineering for application assistance and applicable service factors.
Specifications Lining Area
4800 in² | 30900 cm²
Specifications Static Torque At 100 Pounds Per Square Inch Psi 7
2750000 lbf.in | 311000 N·m
Weight And Inertia Ring Fd And Qc Adapter Inertia
10600 lb·ft² | 445 kg·m²
Weight And Inertia Ring Fd And Qc Adapter Weight
3560 lb | 1610 kg
Weight And Inertia Total Inertia
18500 lb·ft² | 777 kg·m²
Weight And Inertia Total Weight
7570 lb | 3430 kg
