Multi-Flex™ 128 Series 3" High Pressure Hot Tap Insertion Plug
Multi-Flex™ 128 Series 3" High Pressure Hot Tap Insertion Plug
SKU:POW-49939e
Experience seamless pipeline repairs with the Multi-Flex™ 128 Series 3" Hot Tap Insertion Plug, designed for durability and easy live installation.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Multi-Flex™ 128 Series 3" High Pressure Hot Tap Insertion Plug
$249.99
Quantity: 1
Claim Your Seller Account
Multi-Flex™ 128 Series 3" High Pressure Hot Tap Insertion Plug
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Multi-Flex™ 128 Series 3" Maximum Plug Diameter High Pressure Hot Tap Insertion Plug is engineered for pressurized pipelines, featuring an internal stiffener and directional shoe for seamless hot tap installation. With a woven ballistic nylon reinforced polyurethane outer ply, this plug ensures durability and flexibility for navigating bends. Its ability to stop flow for repairs and easy insertion in live pipelines make it a reliable choice for pipeline maintenance. Customizable to specific requirements, this plug offers reliability and longevity in diverse applications.

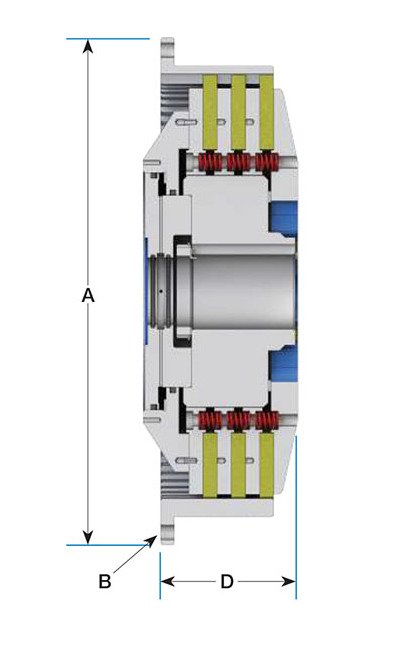

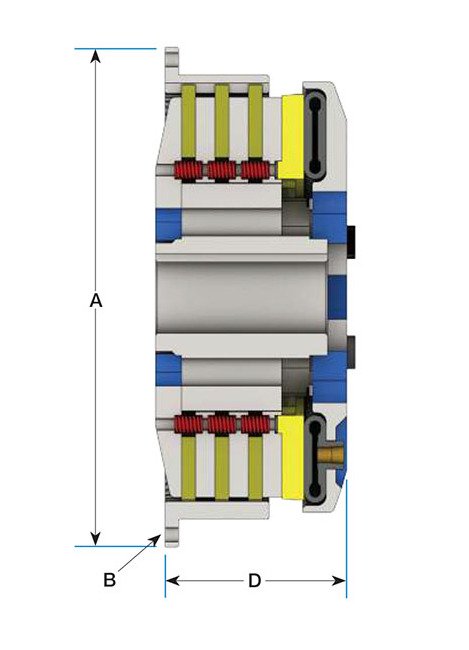

Product Specifications
Dimensions Diameter B
21/32 in | 16.7 mm
Dimensions Dimension A
22.498 in | 571.45 mm
Dimensions Dimension C
8-3/4 in | 222.3 mm
Dimensions Dimension D
6 in | 153.2 mm
Dimensions Hole Circle B
21.38 in | 542.9 mm
Features Features
Coil springs standardAvailable pneumatic or hydraulic actuationHeavy-duty gear tooth friction disc
Note Note
Consult WPT® Application Engineering for application assistance and applicable service factors.Larger bore sizes may be accommodated, consult WPT® Application Engineering.Dynamic torque is 75% of static torque.
Specifications Dimension A Tolerance
+0.003 in | -0.005 in | +0.00 mm | -0.13 mm
Specifications Lining Area
780 in² | 5050 cm²
Specifications Maximum Input Torque
7100 lbf.ft | 9630 N·m
Specifications Maximum Speed
2100 rpm
Specifications Quantity
6
Specifications Ring Type
A
