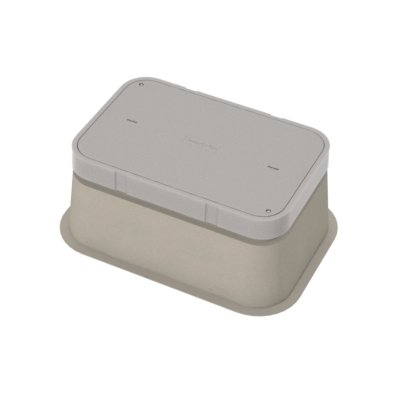

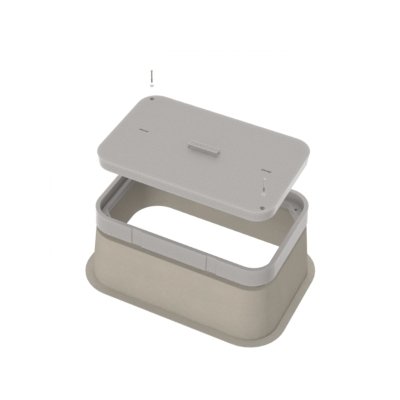

Newbasis PCX™ 27 in. Fiberglass Concrete Assembly
Newbasis PCX™ 27 in. Fiberglass Concrete Assembly
SKU:HAN-0327fc
Durable Newbasis PCX™ 27 in. Fiberglass Concrete Assembly with skid-resistant cover, certified strength, and versatile nameplate options.
Regular price
$749.99
Regular price
Sale price
$749.99
Unit price
per
Initiate Order
Newbasis PCX™ 27 in. Fiberglass Concrete Assembly
$749.99
Quantity: 1
Claim Your Seller Account
Newbasis PCX™ 27 in. Fiberglass Concrete Assembly
$749.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Newbasis PCX™ 27 in. Fiberglass Concrete Assembly is a durable and high-strength solution designed for various applications. With a straight-sided design and stainless steel 3/8" hex bolts, this assembly meets strict ASTM standards for compressive and flexural strength. It features a skid-resistant cover, cast-in floating nut box, and integral drain holes, making it USDA/RUS approved and ideal for institutional environments requiring non-metallic, non-conductive, and UV-resistant materials. With customizable nameplate options and ease of installation, this assembly offers versatility and reliability.
Product Specifications
Available Options
Penta Bolts, Telephone EMS, Power EMS, Floor, Custom Nameplate Installed, Custom Nameplate Shipped Separately, Standard Nameplate Installed, Standard Nameplate Shipped Separately
Dimensional Attributes Height
30 in
Dimensional Attributes Inside Depth
27 in
Dimensional Attributes Inside Length
54 1/2 in | 59 7/8 in
Dimensional Attributes Inside Width For 54 12 In Length
24 1/2 in
Dimensional Attributes Inside Width For 59 78 In Length
29 7/8 in
Dimensional Attributes Length
60 in
Dimensional Attributes Width
30 in
Features
USDA/RUS ApprovedDrop-In nameplateShipped assembledSkid resistant coverCast-in floating nut box - Integral drain holes
Load Ratings
Incidental Traffic - Parking Lot, Sidewalk Conforms to:WUC 3.6ASTM C 857ANSI/SCTE 77 - 2010
Material Properties
Advanced composite: Very high strength to weight ratioNon-metallicNon-conductiveUV ResistantHigh impact resistantImpervious to chemicals and moistureMaterials tested in accordance with ASTM D-543 and ASTM D-570
Nameplates
One standard nameplate included with each assembly, installed at the factory or easily installed in the field. Custom nameplates are available. Contact customer service.Standard NameplatesElectricTelephoneFiber OpticWaterStreet LightingBroadbandTrafficCATVTraffic SignalCommunications
Specifications Assembly Weight
589 lb
Specifications Bolt Head Type
Hex
Specifications Bolt Material
Stainless Steel
Specifications Bolt Size
3/8 in
Specifications Box Weight
217 lb
Specifications Brand
newbasis, PCX™
Specifications Coefficient Of Friction Dry Per American Society
1.085
Specifications Compressive Strength Per American Society For Tes
87 MPa
Specifications Cover Weight
372 lb
Specifications Fiber Reinforced Polymers Frp Compressive Strengt
134 MPa
Specifications Fiber Reinforced Polymers Frp Flexural Strength P
116 MPa
Specifications Flexural Strength Per American Society For Testin
20 MPa
Specifications Industry Standardscertifications
WUC 3.6, ANSI/SCTE 77 2010 -"T15/20K
Specifications Loaded Pallet Weight
1238 lb
Specifications Material
Fiberglass Concrete
Specifications Packaging
Steel Banding, Edge Protection
Specifications Pallet Quantity
2
Specifications Side
Straight
Specifications Type
Fiberglass Concrete Assemblies
