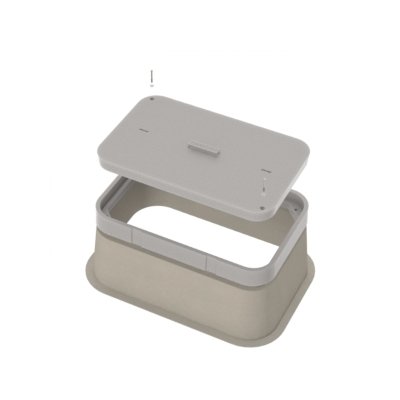

• Newbasis PCX™ 33 in. Fiberglass Concrete Assembly - Image 1

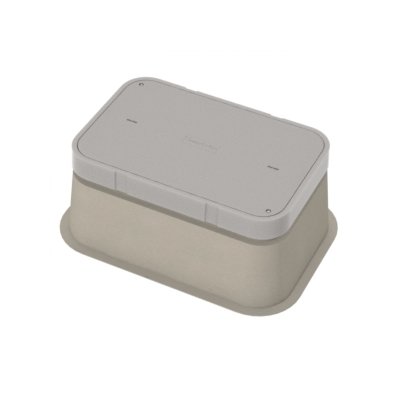

  • Newbasis PCX™ 33 in. Fiberglass Concrete Assembly - Image 2
1 2
Colonial Teltek →

Newbasis PCX™ 33 in. Fiberglass Concrete Assembly

Newbasis PCX™ 33 in. Fiberglass Concrete Assembly

HAN-46f7cc

Durable Newbasis PCX™ 33 in. Fiberglass Concrete Assembly with custom nameplate options and industry-standard certifications for varied uses.

$699.99
$699.99
Sale

Initiate Order

Newbasis PCX™ 33 in. Fiberglass Concrete Assembly

Newbasis PCX™ 33 in. Fiberglass Concrete Assembly

$699.99

Quantity: 1

Claim Your Seller Account

Newbasis PCX™ 33 in. Fiberglass Concrete Assembly

Newbasis PCX™ 33 in. Fiberglass Concrete Assembly

$699.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Newbasis PCX™ 33 in. Fiberglass Concrete Assembly is a durable solution designed with tapered sides, stainless steel hex bolts, and advanced composite materials tested to ASTM standards. With impressive compressive and flexural strengths, this assembly meets industry standards including WUC 3.6 and ANSI/SCTE 77-'T15/20K'. Features include a skid-resistant cover, integral drain holes, and custom nameplate options for various applications.

Product Specifications

Available Options
Penta Bolts, Telephone EMS, Power EMS, 2 Racks, Knockouts, Pulling Eyes, 2 Piece Cover, Custom Nameplate Installed, Custom Nameplate Shipped Separately, Standard Nameplate Installed, Standard Nameplate Shipped Separately
Dimensional Attributes Height
36 in
Dimensional Attributes Inside Depth
33 in
Dimensional Attributes Inside Length
38 5/8 in | 45 1/2 in
Dimensional Attributes Inside Width For 42 38 In Length
38 5/8 in
Dimensional Attributes Inside Width For 45 12 In Length
27 7/8 in
Dimensional Attributes Length
48 in
Dimensional Attributes Width
30 in
Features
USDA/RUS ApprovedDrop-In nameplateShipped assembledSkid resistant coverCast-in floating nut box - Integral drain holes
Load Ratings
Incidental Traffic - Parking Lot, Sidewalk Conforms to:WUC 3.6ASTM C 857ANSI/SCTE 77
Material Properties
Advanced composite: Very high strength to weight ratioNon-metallicNon-conductiveUV ResistantHigh impact resistantImpervious to chemicals and moistureMaterials tested in accordance with ASTM D-543 and ASTM D-570
Nameplates
One standard nameplate included with each assembly, installed at the factory or easily installed in the field. Custom nameplates are available. Contact customer service.Standard NameplatesElectricTelephoneFiber OpticStreet LightingTrafficCATVCommunications
Specifications Assembly Weight
379.67 lb
Specifications Bolt Head Type
Hex
Specifications Bolt Material
Stainless Steel
Specifications Bolt Size
3/8 in
Specifications Box Weight
160.67 lb
Specifications Brand
newbasis, PCX™
Specifications Coefficient Of Friction Dry Per American Society
1.085
Specifications Compressive Strength
11500 psi
Specifications Cover Weight
219 lb
Specifications Fiber Reinforced Polymers Frp Compressive Strengt
19440 psi
Specifications Fiber Reinforced Polymers Frp Flexural Strength P
16,830 psi
Specifications Flexural Strength
4000 psi
Specifications Industry Standardscertifications
WUC 3.6, ANSI/SCTE 77 -''T15/20K''
Specifications Loaded Pallet Weight
784.34 lb
Specifications Material
Fiberglass Concrete
Specifications Packaging
Steel Banding, Edge Protection
Specifications Pallet Quantity
2
Specifications Side
Tapered
Specifications Type
Fiberglass Concrete Assemblies
