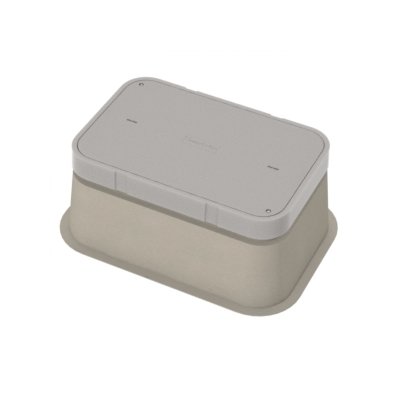

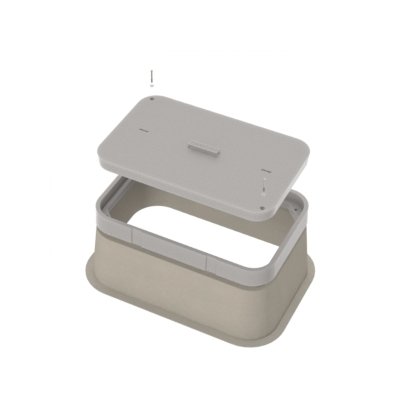

Newbasis PCX™ 36 in. Fiberglass Concrete Assembly with Tapered Sides
Newbasis PCX™ 36 in. Fiberglass Concrete Assembly with Tapered Sides
SKU:HAN-3df857
Premium Newbasis PCX™ 36 in. Fiberglass Concrete Assembly - WUC 3.6, ANSI/SCTE 77 Certified
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
Newbasis PCX™ 36 in. Fiberglass Concrete Assembly with Tapered Sides
$799.99
Quantity: 1
Claim Your Seller Account
Newbasis PCX™ 36 in. Fiberglass Concrete Assembly with Tapered Sides
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Newbasis PCX™ 36 in. Fiberglass Concrete Assembly is a top-of-the-line solution meeting WUC 3.6 and ANSI/SCTE 77 standards. Crafted from advanced composite materials, it boasts high strength, non-conductivity, UV resistance, and chemical/moisture imperviousness. With a skid-resistant cover, integral drain holes, and a cast-in floating nut box, this assembly is USDA/RUS approved for dependable performance under various conditions, making it ideal for institutions seeking durable and compliant utility solutions.
Product Specifications
Available Options
Penta Bolts, Telephone EMS, Power EMS, Racks, Custom Nameplate Installed, Custom Nameplate Shipped Separately, Standard Nameplate Installed, Standard Nameplate Shipped Separately
Dimensional Attributes Height
36 in
Dimensional Attributes Inside Depth
36 in
Dimensional Attributes Inside Length
53 1/4 in | 61 3/8 in
Dimensional Attributes Inside Width For 53 14 In Length
33 in
Dimensional Attributes Inside Width For 61 38 In Length
40 1/4 in
Dimensional Attributes Length
60 in
Dimensional Attributes Width
36 in
Features
USDA/RUS ApprovedDrop-In nameplateShipped assembledSkid resistant coverCast-in floating nut box - Integral drain holes
Load Ratings
Incidental Traffic - Parking Lot, Sidewalk Conforms to:WUC 3.6ASTM C 857ANSI/SCTE 77
Material Properties
Advanced composite: Very high strength to weight ratioNon-metallicNon-conductiveUV ResistantHigh impact resistantImpervious to chemicals and moistureMaterials tested in accordance with ASTM D-543 and ASTM D-570
Nameplates
One standard nameplate included with each assembly, installed at the factory or easily installed in the field. Custom nameplates are available. Contact customer service.Standard NameplatesElectricTelephoneFiber OpticStreet LightingTrafficCATVCommunications
Specifications Assembly Weight
607 lb
Specifications Bolt Head Type
Hex
Specifications Bolt Material
Stainless Steel
Specifications Bolt Size
3/8 in
Specifications Box Weight
242 lb
Specifications Brand
newbasis, PCX™
Specifications Coefficient Of Friction Dry Per American Society
1.085
Specifications Compressive Strength
11500 psi
Specifications Cover Weight
365 lb
Specifications Fiber Reinforced Polymers Frp Compressive Strengt
19440 psi
Specifications Fiber Reinforced Polymers Frp Flexural Strength P
16,830 psi
Specifications Flexural Strength
4000 psi
Specifications Industry Standardscertifications
WUC 3.6, ANSI/SCTE 77 -''T15/20K''
Specifications Loaded Pallet Weight
677 lb
Specifications Material
Fiberglass Concrete
Specifications Packaging
Steel Banding, Edge Protection
Specifications Pallet Quantity
1
Specifications Side
Tapered
Specifications Type
Fiberglass Concrete Assemblies
