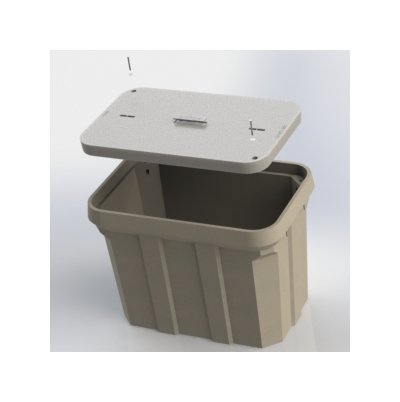

Newbasis PCX™ Polymer Concrete Assembly - 40 7/16" Opening Length
Newbasis PCX™ Polymer Concrete Assembly - 40 7/16" Opening Length
SKU:HAN-73f626
Enhance infrastructure reliability with Newbasis PCX™ Polymer Concrete Assembly. Meets industry standards for durability and non-conductivity.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
Newbasis PCX™ Polymer Concrete Assembly - 40 7/16" Opening Length
$699.99
Quantity: 1
Claim Your Seller Account
Newbasis PCX™ Polymer Concrete Assembly - 40 7/16" Opening Length
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

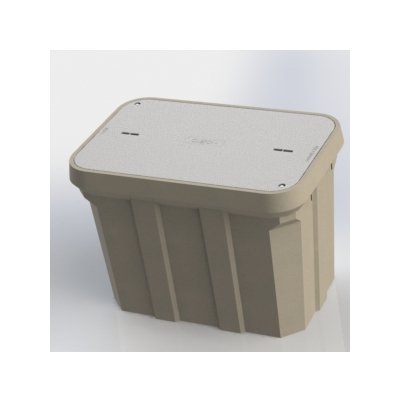

Upgrade your infrastructure with the Newbasis PCX™ Polymer Concrete Assembly featuring a straight-sided design, high compressive and flexural strength, and advanced composite material properties. This open-bottom assembly meets WUC 3.6 and ANSI/SCTE 77 industry standards, incorporating stainless steel hex bolts for secure fastening. With a skid-resistant cover, integral drain holes, and USDA/RUS approval, this assembly ensures durability, non-conductivity, and UV resistance for a wide range of applications.
Product Specifications
Available Options
Tier 22 Load Rating, Penta Bolts, Telephone EMS, Power EMS, 2 Piece Cover, Custom Nameplate Installed, Custom Nameplate Shipped Separately, Standard Nameplate Installed, Standard Nameplate Shipped Separately
Dimensional Attributes Height
30 in
Dimensional Attributes Inside Depth
27 in
Dimensional Attributes Inside Length
40 7/16 in | 45 13/16 in
Dimensional Attributes Inside Width For 40 716 In Length
22 13/16 in
Dimensional Attributes Inside Width For 45 1316 In Length
28 3/16 in
Dimensional Attributes Length
48 in
Dimensional Attributes Width
30 in
Features
USDA/RUS ApprovedDrop-In nameplateShipped assembledSkid resistant coverCast-in floating nut box - Integral drain holes
Load Ratings
Incidental Traffic - Parking Lot, Sidewalk Conforms to:WUC 3.6ASTM C 857ANSI/SCTE 77
Material Properties
Advanced composite: Very high strength to weight ratioNon-metallicNon-conductiveUV ResistantHigh impact resistantImpervious to chemicals and moistureMaterials tested in accordance with ASTM D 543 and ASTM D 570
Nameplates
One standard nameplate included with each assembly, installed at the factory or easily installed in the field. Custom nameplates are available. Contact customer service.Standard NameplatesElectricTelephoneFiber OpticStreet LightingTrafficCATVCommunications
Note
Standard shipping includes van delivery of pallet quantities to the lower 48 states. Partial pallet quantities and flat bed shipping available at an additional cost.
Specifications Assembly Weight
458.6 lb
Specifications Bolt Head Type
Hex
Specifications Bolt Material
Stainless Steel
Specifications Bolt Size
3/8 in
Specifications Box Weight
298.4 lb
Specifications Brand
newbasis, PCX™
Specifications Coefficient Of Friction Dry Per American Society
1.085
Specifications Compressive Strength
11500 psi
Specifications Cover Weight
160.2 lb
Specifications Flexural Strength
4000 psi
Specifications Industry Standardscertifications
WUC 3.6, ANSI/SCTE 77 - ''T15/20K"
Specifications Loaded Pallet Weight
943 lb
Specifications Material
Polymer Concrete
Specifications Packaging
Steel Banding, Edge Protection
Specifications Pallet Quantity
2
Specifications Side
Straight
Specifications Style
Open Bottom
Specifications Type
Polymer Concrete Assembly
