NOMAD® 1 1/2" Polypropylene Pwr-Flo™ AODD Pump, Buna Diaphragm
NOMAD® 1 1/2" Polypropylene Pwr-Flo™ AODD Pump, Buna Diaphragm
SKU:MAN-9fe707
High-performance NOMAD® 1 1/2" Polypropylene Pwr-Flo™ AODD Pump with Buna Diaphragm for efficient and reliable liquid transfer in industrial settings.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
NOMAD® 1 1/2" Polypropylene Pwr-Flo™ AODD Pump, Buna Diaphragm
$799.99
Quantity: 1
Claim Your Seller Account
NOMAD® 1 1/2" Polypropylene Pwr-Flo™ AODD Pump, Buna Diaphragm
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The NOMAD® 1 1/2" Polypropylene Pwr-Flo™ AODD Pump with Buna Diaphragm is a high-performance air-driven double diaphragm pump designed as a drop-in replacement for equivalent Wilden® pumps. Built with a chemically resistant polypropylene air valve and center section, this pump features an asymmetrical spool design for efficient air system operation. With a reliable anti-stalling design, it excels in on/off liquid transfer for filling and batching tasks. Handling large solids and slurries with ease, this pump ensures maximum flow rate of 84 gpm, meeting the demanding needs of industrial applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Curves 0

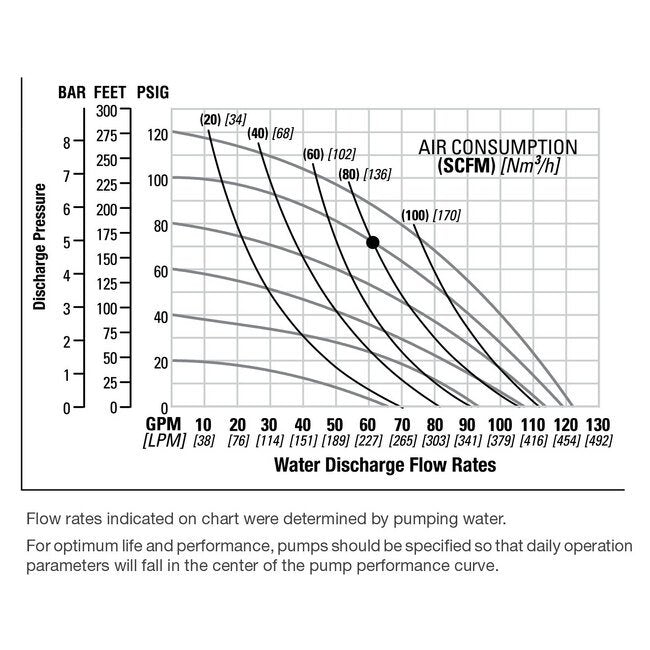

Performance Curves
Specifications 0
Drop in replacement for Wilden® AODD pumps of equivalent make and sizeAir driven double diaphragm pumps handle large solids and slurriesPWR-FLO⢠asymmetrical spool design (ASD) features an efficient air systemThe anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applicationsThe air valve and center section is made of chemically resistant polypropylene.
Specifications Check Valve Seat
Polypropylene
Specifications Customs Code
Schedule B Code 8413.50.00.50
Specifications Diaphragm Material
Buna
Specifications Displacement Per Cycle
0.15 gal | 0.57 lit
Specifications Elastomers
Buna, Buna
Specifications Fluid Inlet Size
1.5 in | 38 mm
Specifications Fluid Outlet Size
1.5 Flange in | 38 Flange mm
Specifications Height
26 Inch | 26 in | 668.02 mm
Specifications Length
12 Inch | 12 in | 0.2997 m | 299.72 mm
Specifications Max Flow Rate
84 gpm | 317.97 lpm
Specifications Model
NPF40/PPPP/BN/BN/PBN/FL/B
Specifications Non Wetted Material
Polypropylene
Specifications Similar Or Comparable To Brand
Nomad®
Specifications Similar Or Comparable To Part
40-12661
Specifications Solids Handling
0.25 in | 6 mm
Specifications Wetted Moc
Polypropylene
Specifications Width
19 Inch | 19 in | 0.4775 m | 477.52 mm
