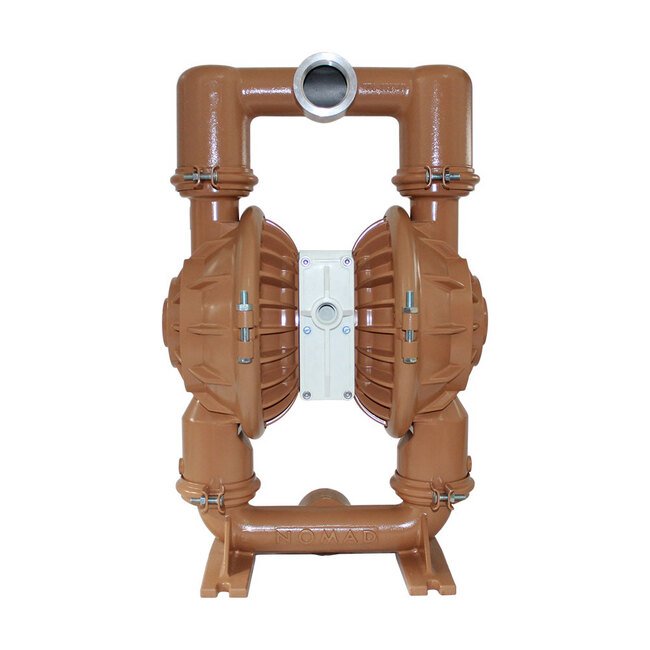

NOMAD® 2" Aluminum Pwr-Flo™ AODD Pump with Neoprene Diaphragm
NOMAD® 2" Aluminum Pwr-Flo™ AODD Pump with Neoprene Diaphragm
SKU:MAN-bb2a8e
Efficient and reliable NOMAD® 2" Aluminum AODD Pump with Neoprene Diaphragm for industrial applications.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
NOMAD® 2" Aluminum Pwr-Flo™ AODD Pump with Neoprene Diaphragm
$1,899.99
Quantity: 1
Claim Your Seller Account
NOMAD® 2" Aluminum Pwr-Flo™ AODD Pump with Neoprene Diaphragm
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The NOMAD® 2" Aluminum Pwr-Flo™ AODD Pump with Neoprene Diaphragm is a top-of-the-line industrial pump designed for efficiency and reliability. Featuring a drop-in replacement design for Wilden® AODD pumps, this pump can handle large solids and slurries with ease. The asymmetrical spool design ensures efficient air system operation, making it ideal for filling and batching applications. Constructed with chemically resistant polypropylene components and a neoprene diaphragm, this pump offers exceptional durability and performance. With a maximum flow rate of 164.7 gpm, this pump is a must-have for industrial applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Curves 0

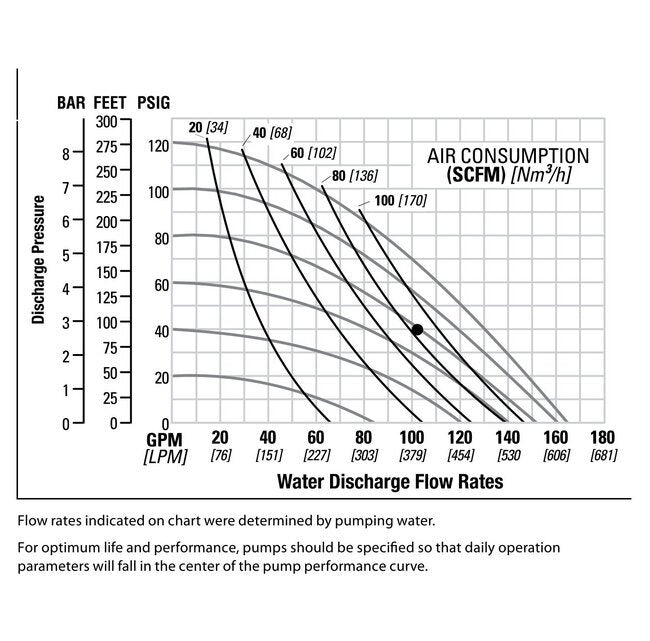

Performance Curves
Specifications 0
Drop in replacement for Wilden® AODD pumps of equivalent make and sizeAir driven double diaphragm pumps handle large solids and slurriesPWR-FLO⢠asymmetrical spool design (ASD) features an efficient air systemThe anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applicationsThe air valve and center section is made of chemically resistant polypropylene.
Specifications Check Valve Seat
Buna
Specifications Customs Code
Schedule B Code 8413.50.00.50
Specifications Diaphragm Material
Neoprene
Specifications Displacement Per Cycle
0.7 gal | 2.65 lit
Specifications Elastomers
Buna, Buna
Specifications Fluid Inlet Size
2 in | 51 mm
Specifications Fluid Outlet Size
2 BSP in | 51 BSP mm
Specifications Height
26 Inch | 26 in | 668.02 mm
Specifications Length
26 Inch | 26 in | 0.6680 m | 668.02 mm
Specifications Max Flow Rate
164.7 gpm | 623.46 lpm
Specifications Model
NPF50/AAPP/NE/BN/BN/B/C
Specifications Non Wetted Material
Polypropylene
Specifications Similar Or Comparable To Brand
Nomad®
Specifications Similar Or Comparable To Part
50-25636
Specifications Solids Handling
0.25 in | 6 mm
Specifications Wetted Moc
Aluminum
Specifications Width
14 Inch | 14 in | 0.3429 m | 342.90 mm
