NOMAD® 2" BSP Clamped Stainless Steel AODD Pump with PTFE Diaphragms
NOMAD® 2" BSP Clamped Stainless Steel AODD Pump with PTFE Diaphragms
SKU:MAN-b9df80
Premium NOMAD® 2" AODD Pump with stainless steel build, PTFE diaphragms & anti-stalling design.
Regular price
$1,599.99
Regular price
Sale price
$1,599.99
Unit price
per
Initiate Order
NOMAD® 2" BSP Clamped Stainless Steel AODD Pump with PTFE Diaphragms
$1,599.99
Quantity: 1
Claim Your Seller Account
NOMAD® 2" BSP Clamped Stainless Steel AODD Pump with PTFE Diaphragms
$1,599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The NOMAD® 2" BSP Clamped PWR-FLO™ AODD Pump is a high-performance pump designed as a drop-in replacement for Wilden® pumps. Featuring stainless steel construction with PTFE full flow diaphragms, this pump handles large solids and slurries efficiently. The asymmetrical spool design ensures reliable on/off liquid transfer for filling and batching applications. With a max flow rate of 131 gpm, stainless steel components, and anti-stalling design, this pump guarantees durability, efficiency, and chemical resistance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Curves 0

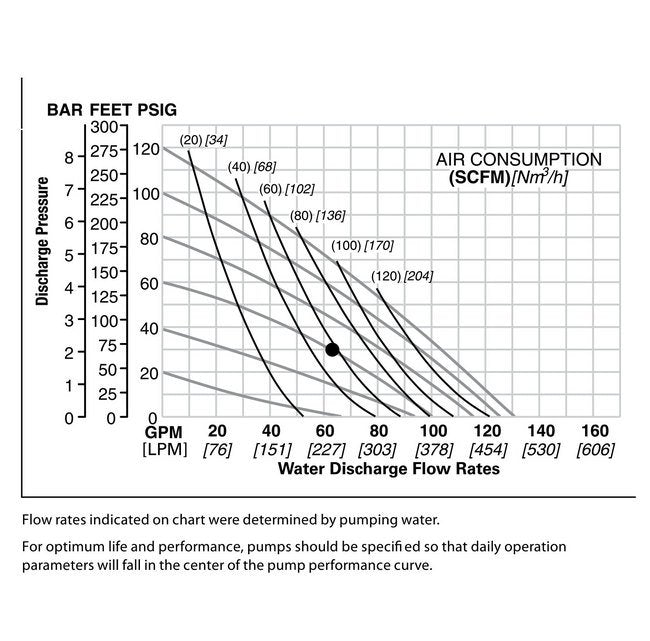

Performance Curves
Dimensions 0

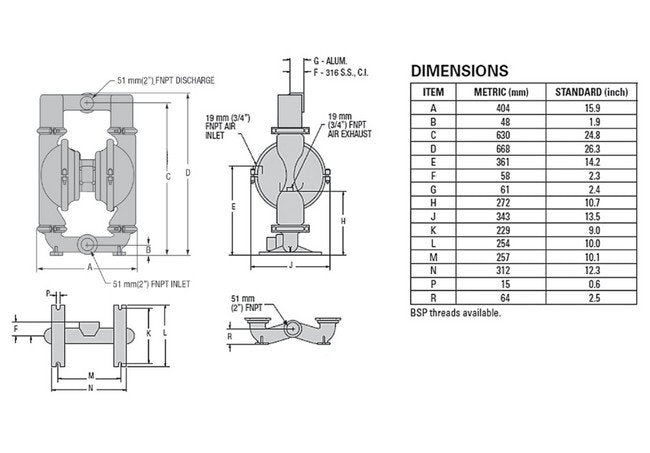

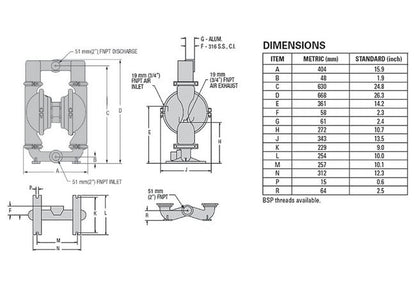

Dimensions
Specifications 0
Drop in replacement for Wilden® AODD pumps of equivalent make and sizeAir driven double diaphragm pumps handle large solids and slurriesPWR-FLO⢠asymmetrical spool design (ASD) features an efficient air systemThe anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applications The air valve and center section is made of chemically resistant polypropylene.
Specifications Check Valve Seat
Stainless Steel
Specifications Diaphragm Material
PTFE - Full Flow
Specifications Displacement Per Cycle
0.44 gal | 1.67 lit
Specifications Elastomers
PTFE, PTFE (with Neoprene back-up)
Specifications Fluid Inlet Size
2 BSP in | 51 BSP mm
Specifications Fluid Outlet Size
2 BSP in | 51 BSP mm
Specifications Height
26 Inch | 26 in | 668.02 mm
Specifications Length
26 Inch | 26 in | 0.6680 m | 668.02 mm
Specifications Max Flow Rate
131 gpm | 495.89 lpm
Specifications Moc
Stainless Steel
Specifications Similar Or Comparable To Brand
Nomad®
Specifications Similar Or Comparable To Part
50-37462
Specifications Solids Handling
0.25 in | 6 mm
Specifications Wetted Moc
Stainless Steel
Specifications Width
14 Inch | 14 in | 0.3429 m | 342.90 mm
