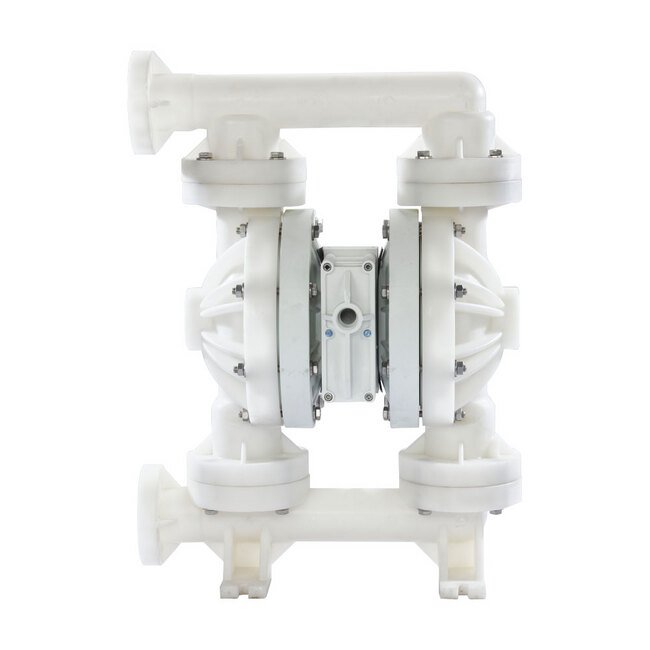

NOMAD® 2" Polypropylene Pwr-Flo™ AODD Pump with Viton®/FKM Diaphragm
NOMAD® 2" Polypropylene Pwr-Flo™ AODD Pump with Viton®/FKM Diaphragm
SKU:MAN-e80962
Reliable NOMAD® 2" Polypropylene Pwr-Flo™ AODD Pump with Viton®/FKM Diaphragm - Ideal for industrial fluid transfer applications
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
NOMAD® 2" Polypropylene Pwr-Flo™ AODD Pump with Viton®/FKM Diaphragm
$1,899.99
Quantity: 1
Claim Your Seller Account
NOMAD® 2" Polypropylene Pwr-Flo™ AODD Pump with Viton®/FKM Diaphragm
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The NOMAD® 2" Polypropylene Pwr-Flo™ AODD Pump with Viton®/FKM Diaphragm is a robust and efficient air-driven double diaphragm pump designed as a drop-in replacement for Wilden® AODD pumps. Its asymmetrical spool design ensures optimal air system efficiency, making it ideal for handling large solids, slurries, and on/off liquid transfer applications. Made of chemically resistant polypropylene with Viton®/FKM diaphragms, this pump offers exceptional reliability and durability. With a max flow rate of 165 gpm and compatibility with various chemicals, it is a versatile solution for industrial fluid transfer needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Curves 0

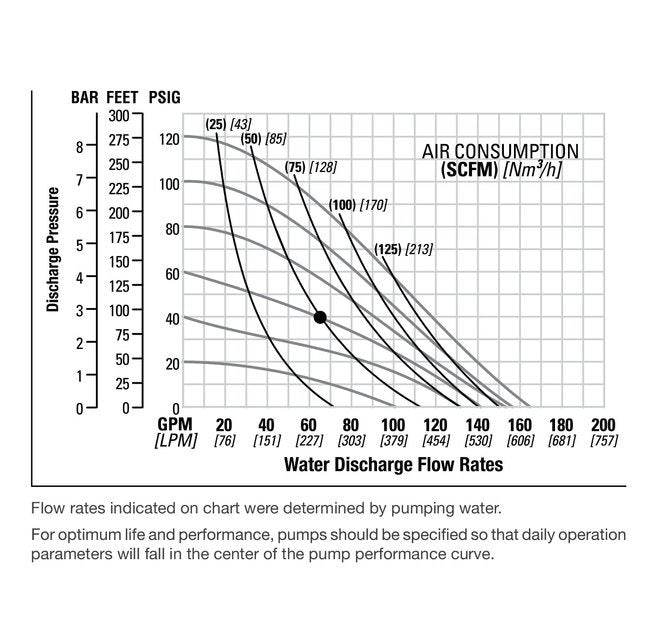

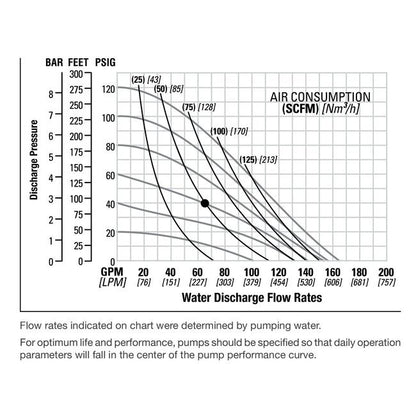

Performance Curves
Specifications 0
Drop in replacement for Wilden® AODD pumps of equivalent make and sizeAir driven double diaphragm pumps handle large solids and slurriesPWR-FLO⢠asymmetrical spool design (ASD) features an efficient air systemThe anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applicationsThe air valve and center section is made of chemically resistant polypropylene.
Specifications Ball Moc
Viton/FKM
Specifications Check Valve Seat
Viton® Encapsulated
Specifications Customs Code
HTS Code 8413.50.00.50Schedule B Code 8413.50.00.50HS Code 8413.50.00
Specifications Diaphragm Material
Viton®/FKM
Specifications Displacement Per Cycle
0.727 gal | 2.75 lit
Specifications Elastomers
Viton® Encapsulated, Viton®, Viton/FKM
Specifications Fluid Inlet Size
2 Flanged in | 51 Flanged mm
Specifications Fluid Outlet Size
2 Flange in | 51 Flange mm
Specifications Height
32 Inch | 32 in | 805.18 mm
Specifications Length
32 Inch | 32 in | 0.8052 m | 805.18 mm
Specifications Max Flow Rate
165 gpm | 624.59 lpm
Specifications Moc
Polypropylene
Specifications Model
NPF50/PPPP/VT/VT/PTV/FL/B
Specifications Non Wetted Material
Polypropylene
Specifications Similar Or Comparable To Brand
Nomad®
Specifications Similar Or Comparable To Part
50-1268-1
Specifications Solids Handling
0.25 in | 6 mm
Specifications Wetted Moc
Polypropylene
Specifications Width
14 Inch | 14 in | 0.3531 m | 353.06 mm
