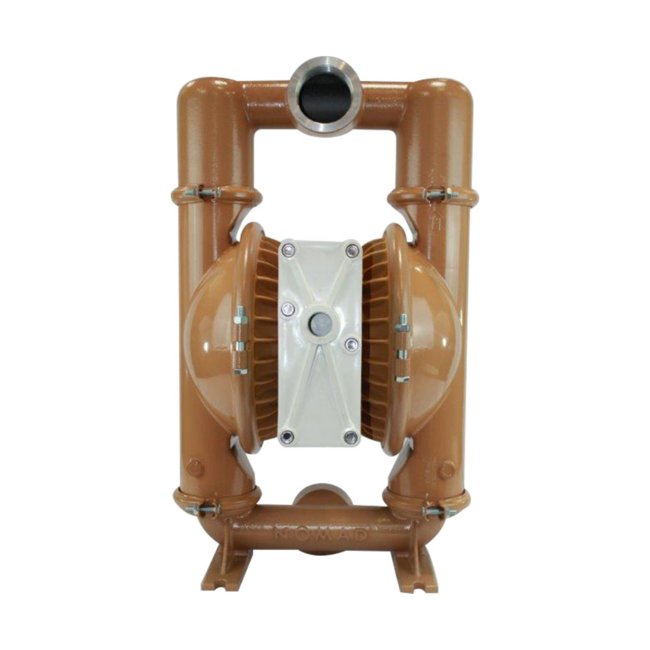

Nomad® 3" NPT Clamped PWR-FLO™ AODD Pump, Aluminum with PTFE Diaphragms
Nomad® 3" NPT Clamped PWR-FLO™ AODD Pump, Aluminum with PTFE Diaphragms
SKU:MAN-bbea75
High-performance Nomad® AODD Pump with PTFE Diaphragms, ideal for industrial fluid handling applications.
Regular price
$1,499.99
Regular price
Sale price
$1,499.99
Unit price
per
Initiate Order
Nomad® 3" NPT Clamped PWR-FLO™ AODD Pump, Aluminum with PTFE Diaphragms
$1,499.99
Quantity: 1
Claim Your Seller Account
Nomad® 3" NPT Clamped PWR-FLO™ AODD Pump, Aluminum with PTFE Diaphragms
$1,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Nomad® 3" NPT Clamped PWR-FLO™ AODD Pump is a superior solution for industrial fluid handling. With a drop-in replacement design for Wilden® AODD pumps, this pump boasts an air-driven double diaphragm capable of handling large solids and slurries. The PWR-FLO™ asymmetrical spool design ensures efficient air usage, making it ideal for on/off liquid transfer applications. Constructed with chemically resistant aluminum and PTFE diaphragms, this pump offers exceptional reliability and a maximum flow rate of 232 gpm. Designed for durability and performance, the Nomad® pump is a top choice for demanding environments.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Curves 0
Performance Curves

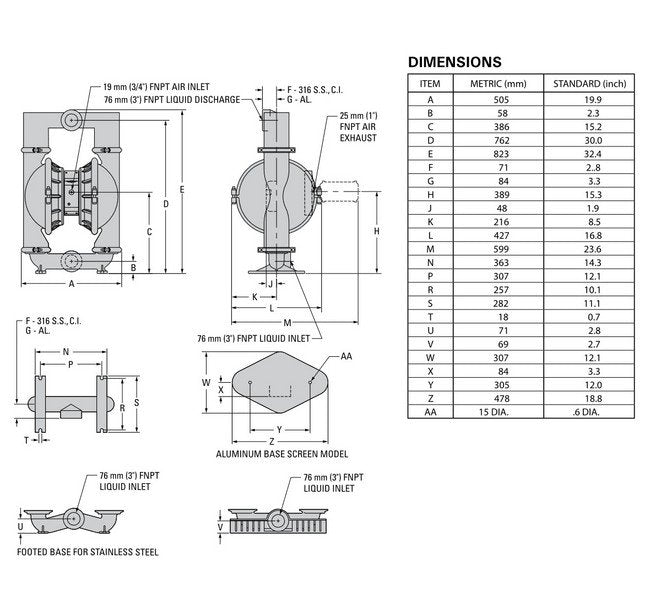

Dimensions 0
Dimensions
Specifications 0
Drop in replacement for Wilden® AODD pumps of equivalent make and sizeAir driven double diaphragm pumps handle large solids and slurriesPWR-FLO⢠asymmetrical spool design (ASD) features an efficient air systemThe anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applications The air valve and center section is made of chemically resistant polypropylene.
Specifications Check Valve Seat
Aluminum
Specifications Diaphragm Material
PTFE - Full Flow
Specifications Displacement Per Cycle
1.49 gal | 5.64 lit
Specifications Elastomers
PTFE, PTFE (with Neoprene back-up)
Specifications Fluid Inlet Size
3 NPT in | 76 NPT mm
Specifications Fluid Outlet Size
3 NPT in | 76 NPT mm
Specifications Height
32 Inch | 32 in | 822.96 mm
Specifications Length
32 Inch | 32 in | 0.8230 m | 822.96 mm
Specifications Max Flow Rate
232 gpm | 878.22 lpm
Specifications Moc
Aluminum
Specifications Similar Or Comparable To Brand
Nomad®
Specifications Similar Or Comparable To Part
80-26562
Specifications Solids Handling
0.375 in | 10 mm
Specifications Wetted Moc
Aluminum
Specifications Width
21 Inch | 21 in | 0.5232 m | 523.24 mm
