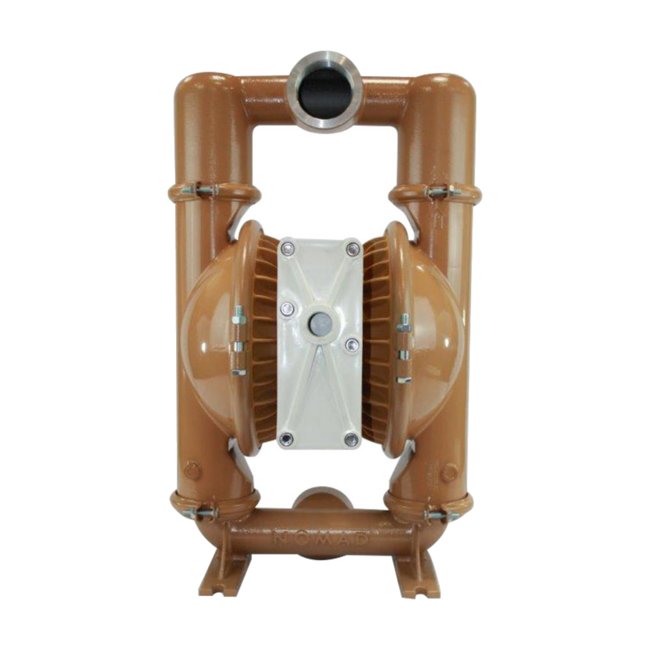

NOMAD® 3" Tri-Clamp Stainless Steel AODD Pump with Santoprene® Diaphragm
NOMAD® 3" Tri-Clamp Stainless Steel AODD Pump with Santoprene® Diaphragm
SKU:MAN-46f42e
High-performance NOMAD® 3" Tri-Clamp AODD Pump for efficient liquid transfer in industrial applications.
Regular price
$1,299.99
Regular price
Sale price
$1,299.99
Unit price
per
Initiate Order
NOMAD® 3" Tri-Clamp Stainless Steel AODD Pump with Santoprene® Diaphragm
$1,299.99
Quantity: 1
Claim Your Seller Account
NOMAD® 3" Tri-Clamp Stainless Steel AODD Pump with Santoprene® Diaphragm
$1,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The NOMAD® 3" Tri-Clamp PWR-FLO™ AODD Pump is a drop-in replacement designed for seamless compatibility with Wilden® AODD pumps. Crafted from stainless steel with a Santoprene® diaphragm, this pump excels in handling large solids and slurries. Its PWR-FLO™ asymmetrical spool design ensures efficient air system operation while maintaining reliability in on/off liquid transfer applications. With a maximum flow rate of 243 gpm, this pump is ideal for filling and batching tasks in industrial settings.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Curves 0

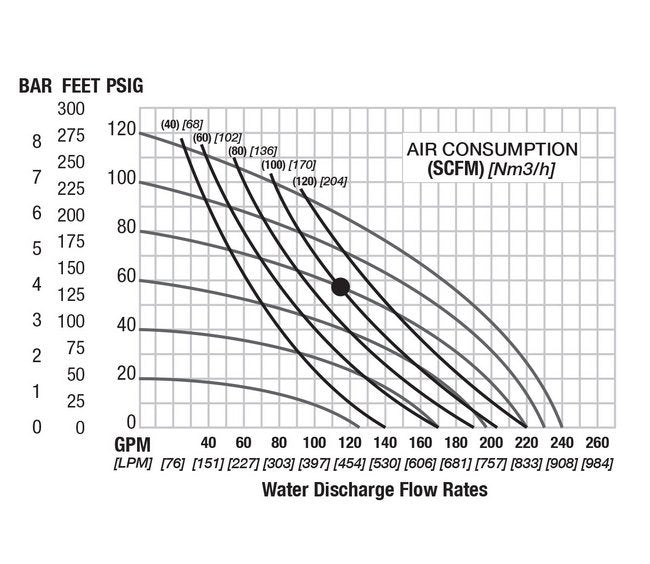

Performance Curves
Specifications 0
Drop in replacement for Wilden® AODD pumps of equivalent make and sizeAir driven double diaphragm pumps handle large solids and slurriesPWR-FLO⢠asymmetrical spool design (ASD) features an efficient air systemThe anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applications The air valve and center section is made of chemically resistant polypropylene.
Specifications Ball Moc
Santoprene®
Specifications Check Valve Seat
Santoprene
Specifications Customs Code
Schedule B Code 8413.50.00.50HS Code 8413.50.00
Specifications Diaphragm Material
Santoprene® - UFI
Specifications Displacement Per Cycle
1.48 gal | 5.60 lit
Specifications Elastomers
Santoprene, Santoprene®, Santoprene®
Specifications Fluid Inlet Size
3 Tri-Clamp in | 76 Tri-Clamp mm
Specifications Fluid Outlet Size
3 Tri-Clamp in | 76 Tri-Clamp mm
Specifications Height
32 Inch | 32 in | 822.96 mm
Specifications Length
3 Inch | 3 in | 0.0823 m | 82.30 mm
Specifications Max Flow Rate
243 gpm | 919.86 lpm
Specifications Moc
Stainless Steel
Specifications Model
NPF80/SAAA/SNF/SN/SN/TC/C/X
Specifications Similar Or Comparable To Brand
Nomad®
Specifications Similar Or Comparable To Part
80-29563
Specifications Solids Handling
0.375 in | 10 mm
Specifications Wetted Moc
Stainless Steel
Specifications Width
21 Inch | 21 in | 0.5232 m | 523.24 mm
