NOMAD® PWR-FLO™ 1 1/2" Polypropylene AODD Pump with Viton®/FKM Diaphragm
NOMAD® PWR-FLO™ 1 1/2" Polypropylene AODD Pump with Viton®/FKM Diaphragm
SKU:MAN-72a34c
Efficient and reliable NOMAD® PWR-FLO™ Polypropylene AODD Pump with Viton®/FKM Diaphragm for industrial applications.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
NOMAD® PWR-FLO™ 1 1/2" Polypropylene AODD Pump with Viton®/FKM Diaphragm
$799.99
Quantity: 1
Claim Your Seller Account
NOMAD® PWR-FLO™ 1 1/2" Polypropylene AODD Pump with Viton®/FKM Diaphragm
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The NOMAD® PWR-FLO™ 1 1/2" Polypropylene AODD Pump with Viton®/FKM Diaphragm is a versatile solution for various applications. Designed as a drop-in replacement for Wilden® AODD pumps, this air-driven double diaphragm pump excels in handling large solids and slurries. Featuring the PWR-FLO™ asymmetrical spool design (ASD), it ensures an efficient air system and excellent reliability in on/off liquid transfer tasks like filling and batching. The construction with chemically resistant polypropylene and Viton®/FKM diaphragm material guarantees durability and performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Curves 0

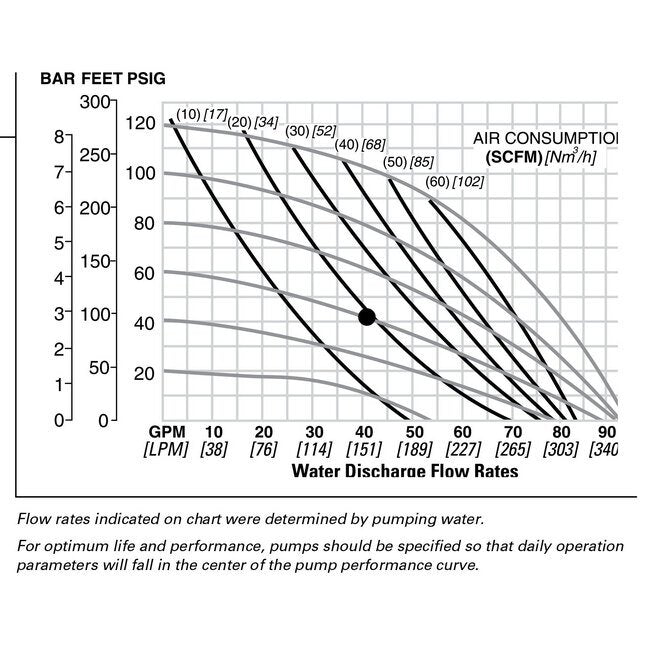

Performance Curves
Specifications 0
Drop in replacement for Wilden® AODD pumps of equivalent make and sizeAir driven double diaphragm pumps handle large solids and slurriesPWR-FLO⢠asymmetrical spool design (ASD) features an efficient air systemThe anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applicationsThe air valve and center section is made of chemically resistant polypropylene.
Specifications Check Valve Seat
Viton® Encapsulated
Specifications Customs Code
Schedule B Code 8413.50.00.50
Specifications Diaphragm Material
Viton®/FKM
Specifications Displacement Per Cycle
0.314 gal | 1.19 lit
Specifications Elastomers
Viton® Encapsulated, Viton®
Specifications Fluid Inlet Size
1.5 in | 38 mm
Specifications Fluid Outlet Size
1.5 Flange in | 38 Flange mm
Specifications Height
21 Inch | 21 in | 528.32 mm
Specifications Length
21 Inch | 21 in | 0.5283 m | 528.32 mm
Specifications Max Flow Rate
92 gpm | 348.26 lpm
Specifications Model
NPF40/PAPP/VT/VT/PTV/FL/C
Specifications Non Wetted Material
Polypropylene
Specifications Similar Or Comparable To Brand
Nomad®
Specifications Similar Or Comparable To Part
40-2268
Specifications Solids Handling
0.1875 in | 5 mm
Specifications Wetted Moc
Polypropylene
Specifications Width
11 Inch | 11 in | 0.2845 m | 284.48 mm
