NOMAD® PWR-FLO™ 1/2" NPT AODD Pump, Polypropylene with Viton/FKM Diaphragm
NOMAD® PWR-FLO™ 1/2" NPT AODD Pump, Polypropylene with Viton/FKM Diaphragm
SKU:MAN-d8ad0d
High-performance NOMAD® PWR-FLO™ AODD Pump with Polypropylene body and Viton/FKM Diaphragm. Efficient, reliable, and chemical-resistant.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
NOMAD® PWR-FLO™ 1/2" NPT AODD Pump, Polypropylene with Viton/FKM Diaphragm
$799.99
Quantity: 1
Claim Your Seller Account
NOMAD® PWR-FLO™ 1/2" NPT AODD Pump, Polypropylene with Viton/FKM Diaphragm
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

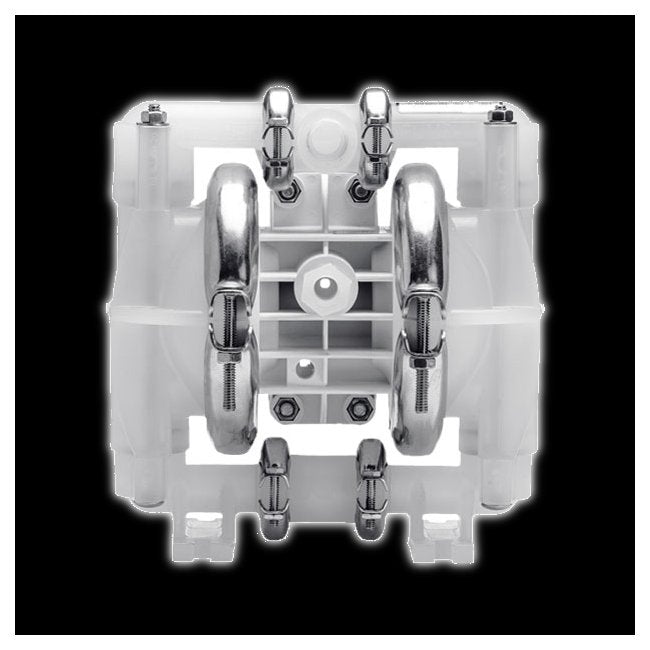

The NOMAD® PWR-FLO™ 1/2" NPT AODD Pump is a high-performance pump designed as a drop-in replacement for Wilden® AODD pumps of equivalent make and size. Constructed with a Polypropylene body and Viton/FKM diaphragm, this air-driven double diaphragm pump excels in handling large solids and slurries with ease. The PWR-FLO™ asymmetrical spool design ensures an efficient air system, offering exceptional reliability in on/off liquid transfer applications. With a chemically resistant polypropylene air valve and center section, this pump is ideal for filling, batching, and various industrial applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Curves 0

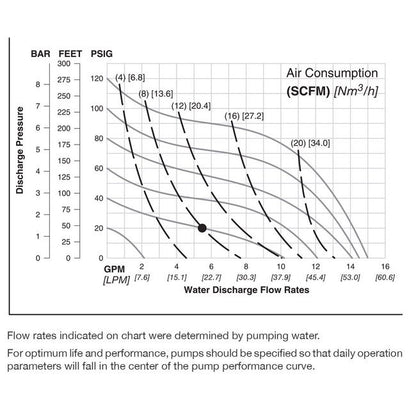

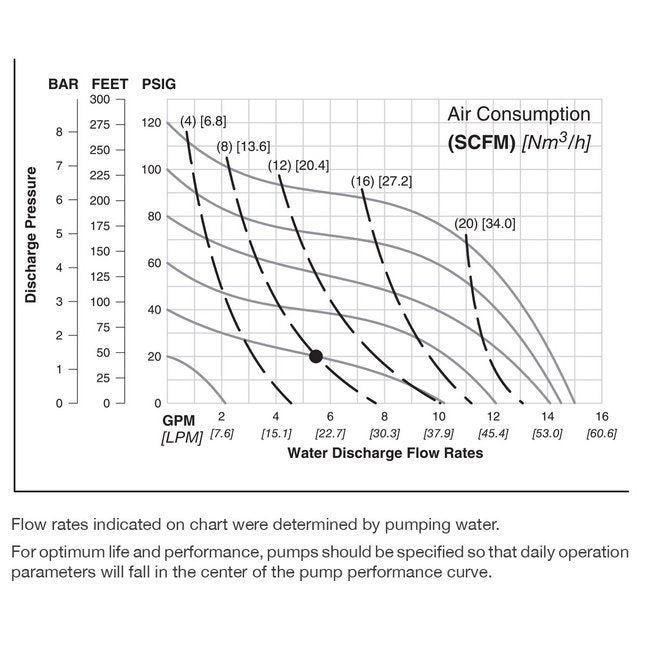

Performance Curves
Specifications 0
Drop in replacement for Wilden® AODD pumps of equivalent make and sizeAir driven double diaphragm pumps handle large solids and slurriesPWR-FLO⢠asymmetrical spool design (ASD) features an efficient air systemThe anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applications The air valve and center section is made of chemically resistant polypropylene.
Specifications Ball Moc
Viton/FKM
Specifications Check Valve Seat
Kynar
Specifications Customs Code
Schedule B Code 8413.50.00.50HS Code 8413.50.00
Specifications Diaphragm Material
Viton/FKM
Specifications Displacement Per Cycle
0.027 gal | 0.10 lit
Specifications Elastomers
Viton, Viton/FKM, Viton/FKM
Specifications Fluid Inlet Size
0.5 NPT in | 13 NPT mm
Specifications Fluid Outlet Size
0.5 NPT in | 13 NPT mm
Specifications Height
9 Inch | 9 in | 218.44 mm
Specifications Length
8 Inch | 8 in | 0.2083 m | 208.28 mm
Specifications Max Flow Rate
14.1 gpm | 53.37 lpm
Specifications Moc
Polypropylene
Specifications Model
NPF15/PPPP/VT/VT/KVT/N/C
Specifications Similar Or Comparable To Brand
Nomad®
Specifications Similar Or Comparable To Part
15-2268
Specifications Solids Handling
0.0625 in | 2 mm
Specifications Wetted Moc
Polypropylene
Specifications Width
8 Inch | 8 in | 0.2032 m | 203.20 mm
