NOMAD® PWR-FLO™ 2" NPT Clamped AODD Pump, Polypropylene w/ Hytrel® Diaphragms
NOMAD® PWR-FLO™ 2" NPT Clamped AODD Pump, Polypropylene w/ Hytrel® Diaphragms
SKU:MAN-88733e
Reliable NOMAD® PWR-FLO™ 2" NPT AODD Pump for efficient liquid transfer. Robust construction, high flow rate, and easy maintenance.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
NOMAD® PWR-FLO™ 2" NPT Clamped AODD Pump, Polypropylene w/ Hytrel® Diaphragms
$899.99
Quantity: 1
Claim Your Seller Account
NOMAD® PWR-FLO™ 2" NPT Clamped AODD Pump, Polypropylene w/ Hytrel® Diaphragms
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

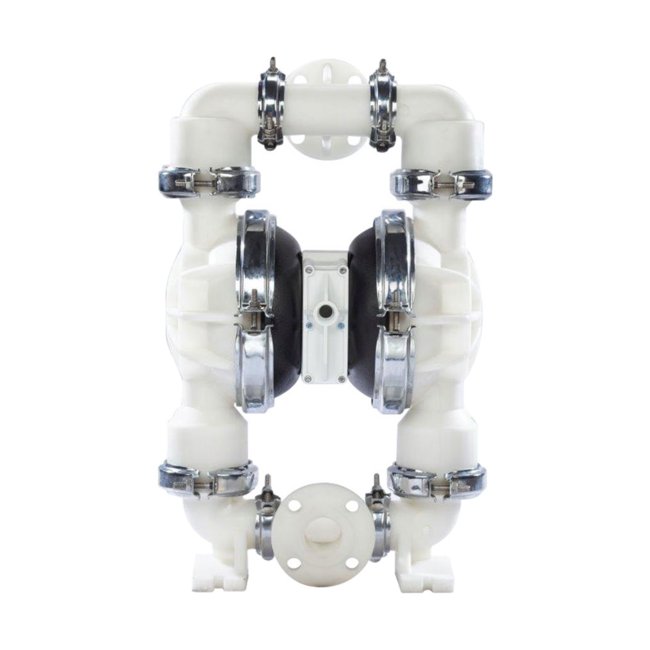

The NOMAD® PWR-FLO™ 2" NPT Clamped AODD Pump is a high-performance air-driven double diaphragm pump designed for handling large solids and slurries. Featuring a chemically resistant polypropylene construction with Hytrel® diaphragms, this pump ensures reliability and longevity. Its asymmetrical spool design (ASD) and anti-stalling features make it ideal for on/off liquid transfer applications, offering efficient air system performance. With a maximum flow rate of 148 gpm and compatibility as a drop-in replacement for Wilden® AODD pumps, this pump excels in filling, batching, and various industrial settings.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Curves 0

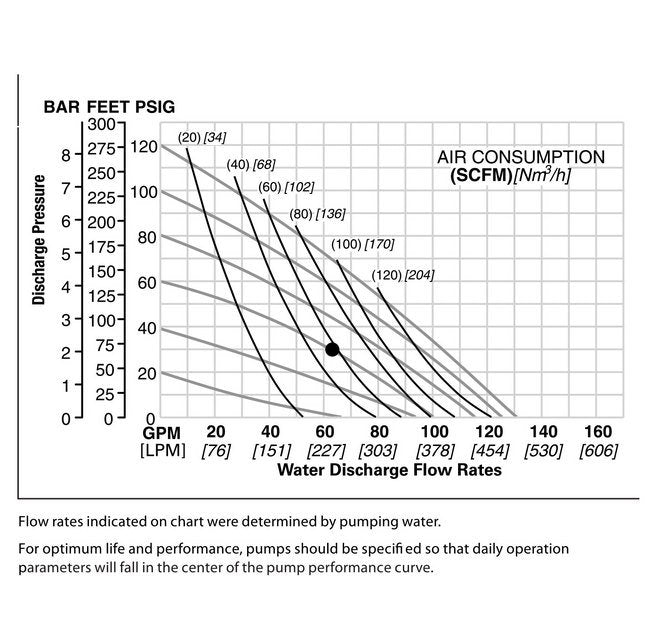

Performance Curves
Dimensions 0

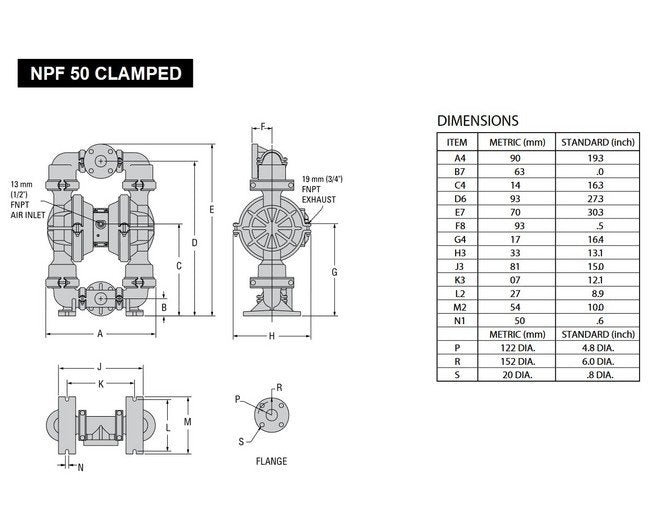

Dimensions
Specifications 0
Drop in replacement for Wilden® AODD pumps of equivalent make and sizeAir driven double diaphragm pumps handle large solids and slurriesPWR-FLO⢠asymmetrical spool design (ASD) features an efficient air systemThe anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applications The air valve and center section is made of chemically resistant polypropylene.
Specifications Check Valve Seat
Polypropylene
Specifications Diaphragm Material
Hytrel®
Specifications Displacement Per Cycle
0.69 gal | 2.61 lit
Specifications Elastomers
Viton, PTFE (with Neoprene back-up)
Specifications Fluid Inlet Size
2 NPT in | 51 NPT mm
Specifications Fluid Outlet Size
2 NPT in | 51 NPT mm
Specifications Height
30 Inch | 30 in | 769.62 mm
Specifications Length
30 Inch | 30 in | 0.7696 m | 769.62 mm
Specifications Max Flow Rate
148 gpm | 560.24 lpm
Specifications Moc
Polypropylene
Specifications Similar Or Comparable To Brand
Nomad®
Specifications Similar Or Comparable To Part
50-22664-1
Specifications Solids Handling
0.25 in | 6 mm
Specifications Wetted Moc
Polypropylene
Specifications Width
13 Inch | 13 in | 0.3327 m | 332.74 mm
