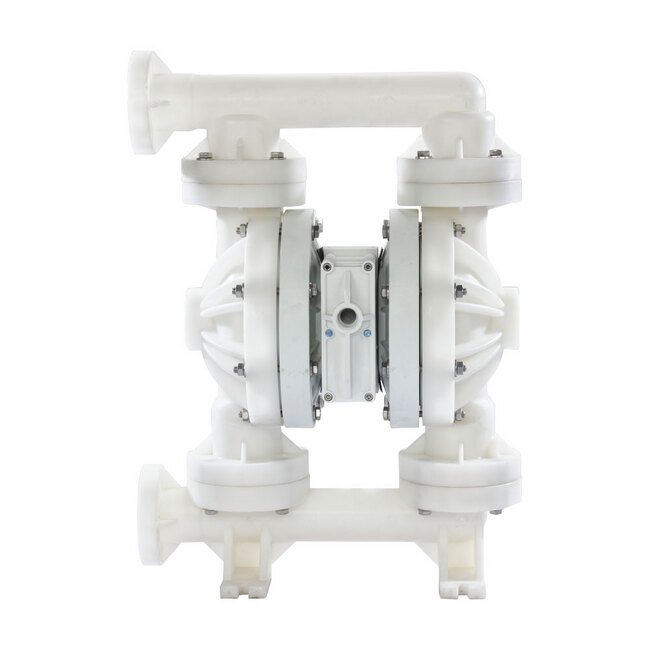

NOMAD® PWR-FLO™ 2" Polypropylene AODD Pump with Nordel®/EPDM Diaphragm
NOMAD® PWR-FLO™ 2" Polypropylene AODD Pump with Nordel®/EPDM Diaphragm
SKU:MAN-d461f0
Efficient and reliable NOMAD® PWR-FLO™ 2" Polypropylene AODD Pump with Nordel®/EPDM Diaphragm - Ideal for large solids and slurries.
Regular price
$1,399.99
Regular price
Sale price
$1,399.99
Unit price
per
Initiate Order
NOMAD® PWR-FLO™ 2" Polypropylene AODD Pump with Nordel®/EPDM Diaphragm
$1,399.99
Quantity: 1
Claim Your Seller Account
NOMAD® PWR-FLO™ 2" Polypropylene AODD Pump with Nordel®/EPDM Diaphragm
$1,399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The NOMAD® PWR-FLO™ 2" Polypropylene AODD Pump with Nordel®/EPDM Diaphragm is a top-of-the-line industrial pump designed for efficiency and reliability. This pump serves as a drop-in replacement for Wilden® AODD pumps, offering enhanced performance in handling large solids and slurries. The PWR-FLO™ asymmetrical spool design ensures optimal air system efficiency and anti-stalling reliability for liquid transfer applications. With a chemically resistant polypropylene air valve and center section, this pump guarantees longevity and consistent operation. Benefit from a max flow rate of 165 gpm and solid handling capabilities of up to 0.25 inches. Trust the NOMAD® brand for quality and performance excellence.
Product Specifications
Curves 0

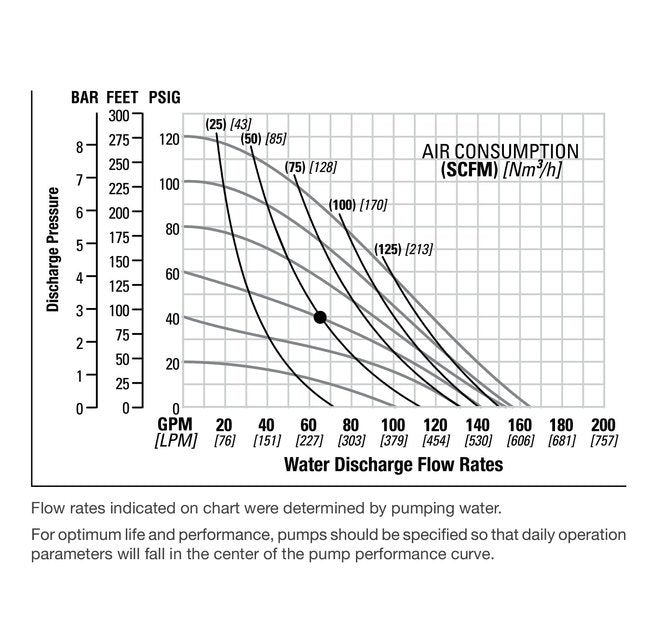

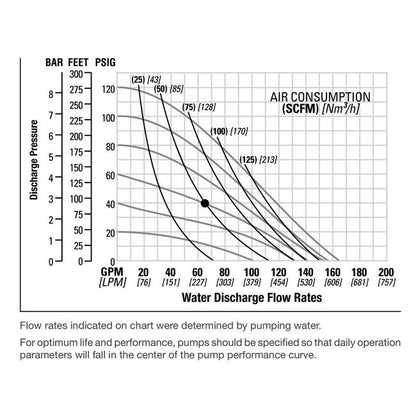

Performance Curves
Specifications 0
Drop in replacement for Wilden® AODD pumps of equivalent make and sizeAir driven double diaphragm pumps handle large solids and slurriesPWR-FLO⢠asymmetrical spool design (ASD) features an efficient air systemThe anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applicationsThe air valve and center section is made of chemically resistant polypropylene.
Specifications Check Valve Seat
Viton® Encapsulated
Specifications Customs Code
Schedule B Code 8413.50.00.50
Specifications Diaphragm Material
Nordel®/EPDM
Specifications Displacement Per Cycle
0.727 gal | 2.75 lit
Specifications Elastomers
Viton® Encapsulated, Nordel®/EPDM
Specifications Fluid Inlet Size
2 in | 51 mm
Specifications Fluid Outlet Size
2 Flange in | 51 Flange mm
Specifications Height
32 Inch | 32 in | 805.18 mm
Specifications Length
32 Inch | 32 in | 0.8052 m | 805.18 mm
Specifications Max Flow Rate
165 gpm | 624.59 lpm
Specifications Model
NPF50/PPPP/ND/ND/PTV/FL/B
Specifications Non Wetted Material
Polypropylene
Specifications Similar Or Comparable To Brand
Nomad®
Specifications Similar Or Comparable To Part
50-1267-1
Specifications Solids Handling
0.25 in | 6 mm
Specifications Wetted Moc
Polypropylene
Specifications Width
14 Inch | 14 in | 0.3531 m | 353.06 mm
