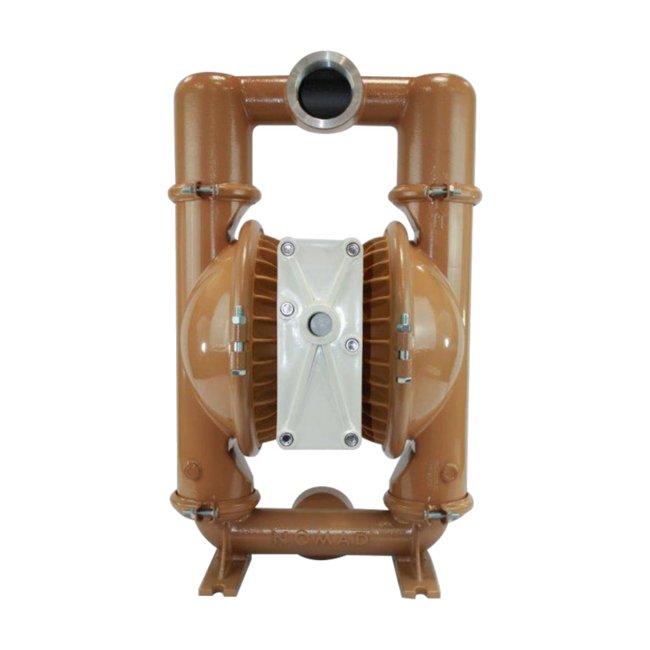

NOMAD® PWR-FLO™ 3" NPT Aluminum AODD Pump with Neoprene Diaphragm
NOMAD® PWR-FLO™ 3" NPT Aluminum AODD Pump with Neoprene Diaphragm
SKU:MAN-e97dbf
Enhance liquid transfer with the NOMAD® PWR-FLO™ 3" NPT Aluminum AODD Pump for efficiency and reliability.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
NOMAD® PWR-FLO™ 3" NPT Aluminum AODD Pump with Neoprene Diaphragm
$899.99
Quantity: 1
Claim Your Seller Account
NOMAD® PWR-FLO™ 3" NPT Aluminum AODD Pump with Neoprene Diaphragm
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your liquid transfer operations with the NOMAD® PWR-FLO™ 3" NPT AODD Pump. Designed as a drop-in replacement for Wilden® pumps, this pump boasts an efficient air system and anti-stalling design, ideal for filling, batching, and handling solids and slurries. Constructed with chemically resistant aluminum and neoprene components, this pump ensures reliability and durability. With a max flow rate of 243 gpm and compliance with industry standards, the NOMAD® PWR-FLO™ pump is a top choice for demanding applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Curves 0

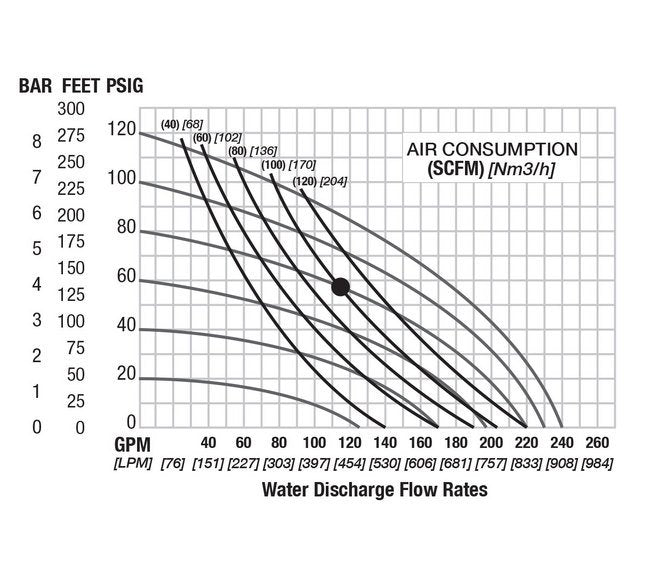

Performance Curves
Specifications 0
Drop in replacement for Wilden® AODD pumps of equivalent make and sizeAir driven double diaphragm pumps handle large solids and slurriesPWR-FLO⢠asymmetrical spool design (ASD) features an efficient air systemThe anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applications The air valve and center section is made of chemically resistant polypropylene.
Specifications Ball Moc
Neoprene
Specifications Check Valve Seat
Neoprene
Specifications Customs Code
Schedule B Code 8413.50.00.50HS Code 8413.50.00
Specifications Diaphragm Material
Neoprene
Specifications Displacement Per Cycle
1.48 gal | 5.60 lit
Specifications Elastomers
Neoprene, Neoprene, Neoprene
Specifications Fluid Inlet Size
3 NPT in | 76 NPT mm
Specifications Fluid Outlet Size
3 NPT in | 76 NPT mm
Specifications Height
32 Inch | 32 in | 822.96 mm
Specifications Length
3 Inch | 3 in | 0.0823 m | 82.30 mm
Specifications Max Flow Rate
243 gpm | 919.86 lpm
Specifications Moc
Aluminum
Specifications Model
NPF80/AAAA/NE/NE/NE/N/C/X
Specifications Similar Or Comparable To Brand
Nomad®
Specifications Similar Or Comparable To Part
80-2653
Specifications Solids Handling
0.375 in | 10 mm
Specifications Wetted Moc
Aluminum
Specifications Width
21 Inch | 21 in | 0.5232 m | 523.24 mm
