NOMAD® 1/4" NPT PWR-FLO⢠AODD Pump, Polypropylene with Viton/FKM Diaphragm
NOMAD® 1/4" NPT PWR-FLO⢠AODD Pump, Polypropylene with Viton/FKM Diaphragm
SKU:MAN-6655b6
High-performance NOMAD® 1/4" NPT AODD Pump with Polypropylene & Viton/FKM Diaphragm for efficient liquid transfer. Chemically resistant, reliable, and durable design.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
NOMAD® 1/4" NPT PWR-FLO⢠AODD Pump, Polypropylene with Viton/FKM Diaphragm
$499.99
Quantity: 1
Claim Your Seller Account
NOMAD® 1/4" NPT PWR-FLO⢠AODD Pump, Polypropylene with Viton/FKM Diaphragm
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

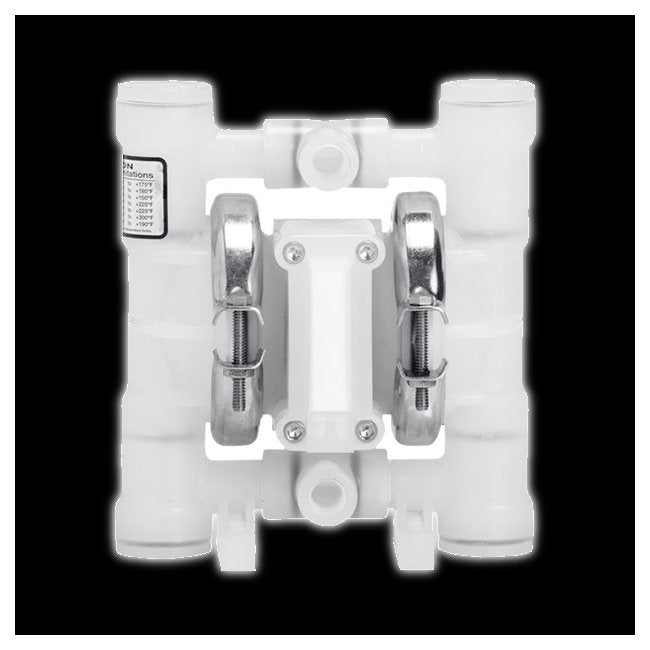

The NOMAD® 1/4" NPT PWR-FLO™ AODD Pump in Polypropylene with Viton/FKM Diaphragm is a top-of-the-line air-driven double diaphragm pump, designed as a drop-in replacement for Wilden® AODD pumps. Its Polypropylene construction and Viton/FKM diaphragm make it chemically resistant and ideal for handling large solids, slurries, and liquids efficiently. The asymmetrical spool design ensures reliable performance in on/off liquid transfer applications such as filling and batching. With a maximum flow rate of 4.4 gpm, this pump offers exceptional durability and precision.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Curves 0

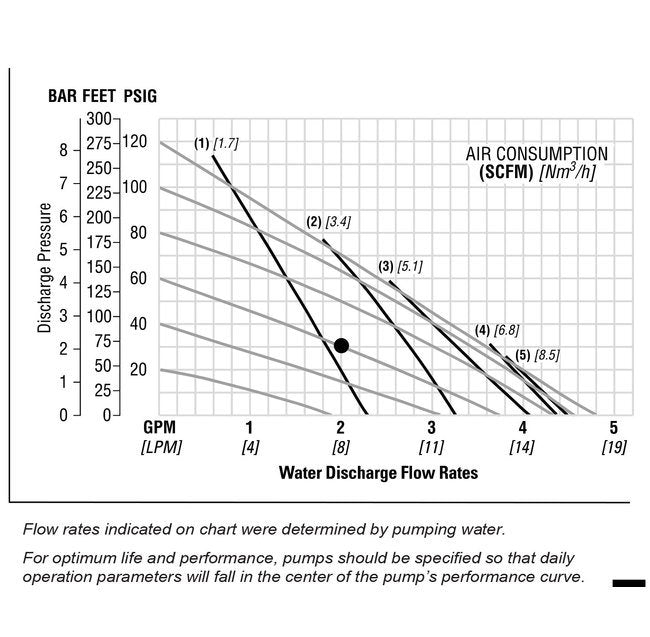

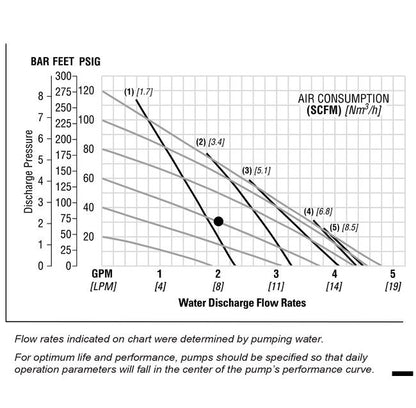

Performance Curves
Specifications 0
Drop in replacement for Wilden® AODD pumps of equivalent make and sizeAir driven double diaphragm pumps handle large solids and slurriesPWR-FLO⢠asymmetrical spool design (ASD) features an efficient air systemThe anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applications The air valve and center section is made of chemically resistant polypropylene.
Specifications Ball Moc
PTFE (with Neoprene back-up)
Specifications Check Valve Seat
Polypropylene
Specifications Customs Code
Schedule B Code 8413.50.00.50HS Code 8413.50.00
Specifications Diaphragm Material
Viton/FKM
Specifications Displacement Per Cycle
0.01 gal | 0.04 lit
Specifications Elastomers
Viton Encapsulated, PTFE (with Neoprene back-up), PTFE (with Neoprene back-up)
Specifications Fluid Inlet Size
0.25 NPT in | 6 NPT mm
Specifications Fluid Outlet Size
0.25 NPT in | 6 NPT mm
Specifications Height
7 Inch | 7 in | 172.72 mm
Specifications Length
7 Inch | 7 in | 0.1727 m | 172.72 mm
Specifications Max Flow Rate
4.4 gpm | 16.66 lpm
Specifications Moc
Polypropylene
Specifications Model
NPF07/PPPP/VT/TF/PTV/N/B
Specifications Similar Or Comparable To Brand
Nomad®
Specifications Similar Or Comparable To Part
07-1268
Specifications Solids Handling
0.03125 in | 1 mm
Specifications Wetted Moc
Polypropylene
Specifications Width
5 Inch | 5 in | 0.1270 m | 127.00 mm
