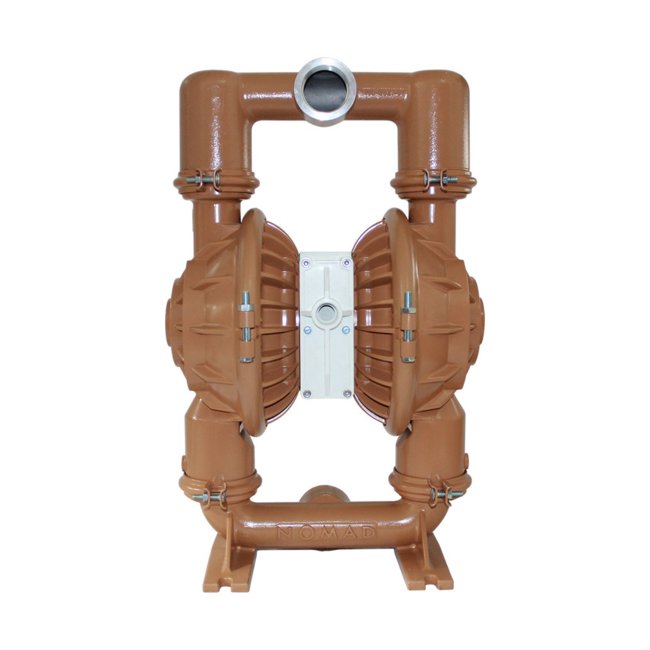

NOMAD® 2" Aluminum AODD Pump with Polyurethane UFI Diaphragm
NOMAD® 2" Aluminum AODD Pump with Polyurethane UFI Diaphragm
SKU:MAN-5b440e
Durable NOMAD® 2" Aluminum AODD Pump with Polyurethane UFI Diaphragm for reliable liquid transfer. Ideal for handling large solids and slurries.
Regular price
$1,399.99
Regular price
Sale price
$1,399.99
Unit price
per
Initiate Order
NOMAD® 2" Aluminum AODD Pump with Polyurethane UFI Diaphragm
$1,399.99
Quantity: 1
Claim Your Seller Account
NOMAD® 2" Aluminum AODD Pump with Polyurethane UFI Diaphragm
$1,399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The NOMAD® 2" BSP PWR-FLO⢠AODD Pump, Aluminum w/ Polyurethane UFI Diaphragm is engineered for superior performance in handling large solids and slurries. Featuring an efficient air system with PWR-FLO⢠asymmetrical spool design (ASD), this pump ensures reliable on/off liquid transfer for filling and batching applications. The aluminum construction and chemically resistant polyurethane components make it a durable and dependable drop-in replacement for Wilden® AODD pumps. With a maximum flow rate of 164.7 gpm, this pump sets a high standard for efficiency and longevity.
Product Specifications
Curves 0

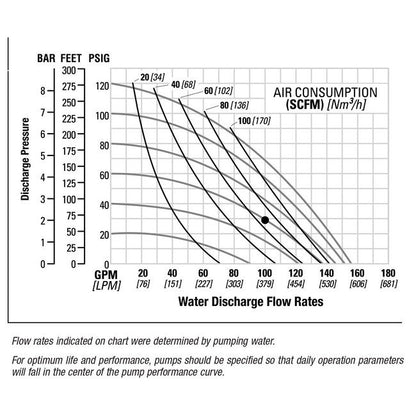

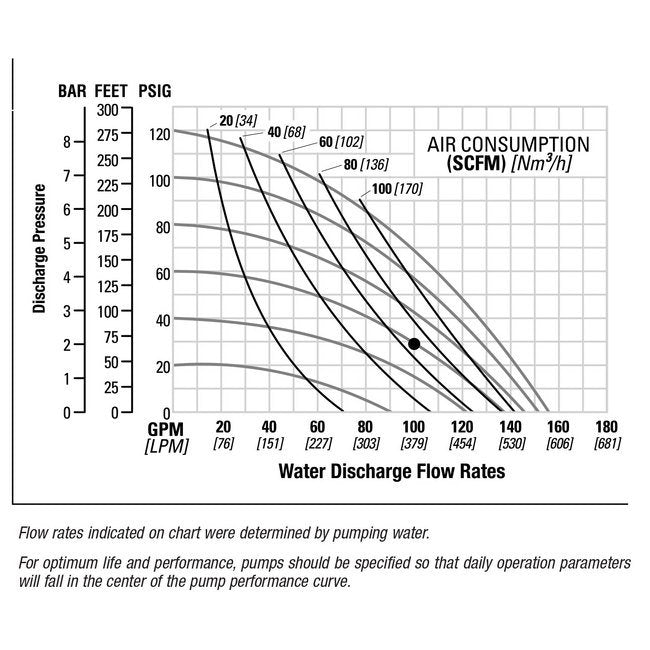

Performance Curves
Specifications 0
Drop in replacement for Wilden® AODD pumps of equivalent make and sizeAir driven double diaphragm pumps handle large solids and slurriesPWR-FLO⢠asymmetrical spool design (ASD) features an efficient air systemThe anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applications The air valve and center section is made of chemically resistant polypropylene.
Specifications Ball Moc
Polyurethane
Specifications Check Valve Seat
Polyurethane
Specifications Customs Code
Schedule B Code 8413.50.00.50HS Code 8413.50.00
Specifications Diaphragm Material
Polyurethane UFI
Specifications Displacement Per Cycle
0.7 gal | 2.65 lit
Specifications Elastomers
Polyurethane, Polyurethane, Polyurethane
Specifications Fluid Inlet Size
2 BSP in | 51 BSP mm
Specifications Fluid Outlet Size
2 BSP in | 51 BSP mm
Specifications Height
26 Inch | 26 in | 668.02 mm
Specifications Length
26 Inch | 26 in | 0.6680 m | 668.02 mm
Specifications Max Flow Rate
164.7 gpm | 623.46 lpm
Specifications Moc
Aluminum
Specifications Model
NPF50/AAAA/PUF/PU/PU/B/C/X/50
Specifications Similar Or Comparable To Brand
Nomad®
Specifications Similar Or Comparable To Part
50-25473-50
Specifications Solids Handling
0.25 in | 6 mm
Specifications Wetted Moc
Aluminum
Specifications Width
14 Inch | 14 in | 0.3429 m | 342.90 mm
