The NOMAD® PWR-FLO⢠1" Aluminum Pump with PTFE Neoprene Diaphragm is a robust air-driven double diaphragm pump designed as a drop-in replacement for Wilden® AODD pumps. With a sturdy construction and a PWR-FLO⢠asymmetrical spool design, this pump excels in handling large solids and slurries efficiently. Its anti-stalling design ensures reliable performance in on/off liquid transfer processes, making it ideal for filling and batching applications. Made of chemically resistant polypropylene, the air valve and center section enhance durability and longevity.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Curves 0

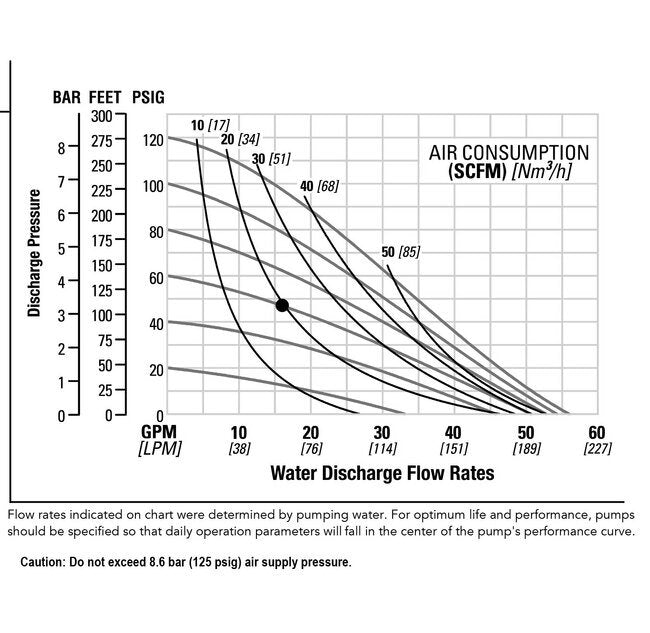

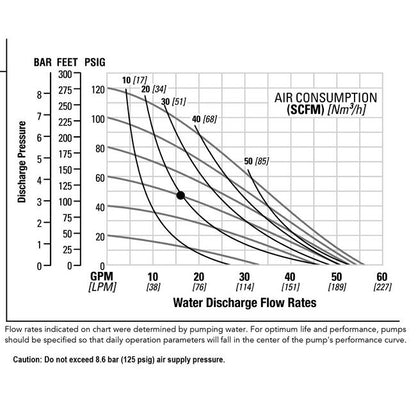

Performance Curves
Specifications 0
Drop in replacement for Wilden® AODD pumps of equivalent make and sizeAir driven double diaphragm pumps handle large solids and slurriesPWR-FLO⢠asymmetrical spool design (ASD) features an efficient air systemThe anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applicationsThe air valve and center section is made of chemically resistant polypropylene.
Specifications Check Valve Seat
Aluminum
Specifications Customs Code
Schedule B Code 8413.50.00.50
Specifications Diaphragm Material
PTFE Neoprene back-up
Specifications Displacement Per Cycle
0.08 gal | 0.30 lit
Specifications Elastomers
PTFE, PTFE
Specifications Fluid Inlet Size
1 in | 25 mm
Specifications Fluid Outlet Size
1 NPT in | 25 NPT mm
Specifications Height
14 Inch | 14 in | 342.90 mm
Specifications Length
15 Inch | 15 in | 0.3734 m | 373.38 mm
Specifications Max Flow Rate
56 gpm | 211.98 lpm
Specifications Model
NPF250/APPP/TF/TF/ATF/N/B
Specifications Non Wetted Material
Polypropylene
Specifications Similar Or Comparable To Brand
Nomad®
Specifications Similar Or Comparable To Part
250-1661
Specifications Solids Handling
0.08 in | 2 mm
Specifications Wetted Moc
Aluminum
Specifications Width
11 Inch | 11 in | 0.2870 m | 287.02 mm
