NOSHOK 915 Series RTD Transmitter -50ºF to 400ºF, Class B Accuracy, PT100, 1/2" MNPT, SS Cast Connection Head, 2.5" Stem
NOSHOK 915 Series RTD Transmitter -50ºF to 400ºF, Class B Accuracy, PT100, 1/2" MNPT, SS Cast Connection Head, 2.5" Stem
SKU:NOS-86b2ac
Industrial-grade NOSHOK 915 Series RTD with Transmitter for precise temperature monitoring in demanding applications.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
NOSHOK 915 Series RTD Transmitter -50ºF to 400ºF, Class B Accuracy, PT100, 1/2" MNPT, SS Cast Connection Head, 2.5" Stem
$349.99
Quantity: 1
Claim Your Seller Account
NOSHOK 915 Series RTD Transmitter -50ºF to 400ºF, Class B Accuracy, PT100, 1/2" MNPT, SS Cast Connection Head, 2.5" Stem
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

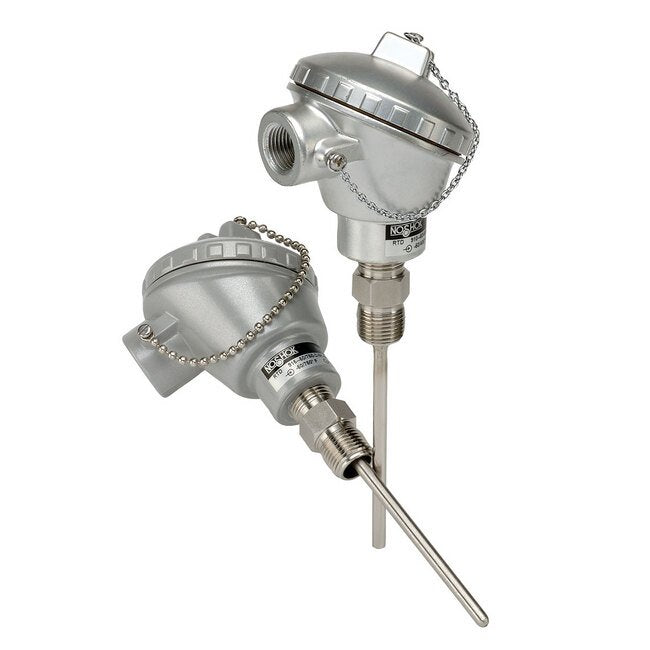

The NOSHOK 915 Series Spring-Loaded RTD with Transmitter is an industrial-grade temperature probe with exceptional precision and durability. Featuring a temperature range from -50ºF to 400ºF and Class B accuracy, this RTD boasts a PT100 element, single 3-wire circuit, and 4-20 mA output. Its stainless steel construction ensures reliability in harsh environments. With a 1/2" MNPT connection and SS Cast Connection Head, this probe is ideal for industrial boilers, petrochemical, exhaust gas monitoring, and food processing applications.
Product Specifications
Additional Information Additional Information
Probe welded to fitting or spring loadedIf used in conjunction with a thermowell, probe can be replaced in some models without possibility for leakageProcess fitting 1/2" NPT standard, others availableRTD PT100 Ω standard, others available2, 3 or 4-wire circuit typesIsolation to 500 Vdc
Application Application
Industrial boilersPetrochemicalExhaust gas monitoringFood processing
Limitations Which Apply Are Limitations Which Apply Are
These units must be operated within the catalogued environmental and application parameters. Determination of failure will be made by NOSHOK, Inc.'s equipment and personnel or a certified test facility specializing in this type of evaluation.In keeping with and for purposes of product and/or manufacturing process improvements, NOSHOK, Inc. reserves the right to make design changes without prior notice.
Note Note
Thermowells are recommended for pressure, corrosive fluids and high velocity applications.

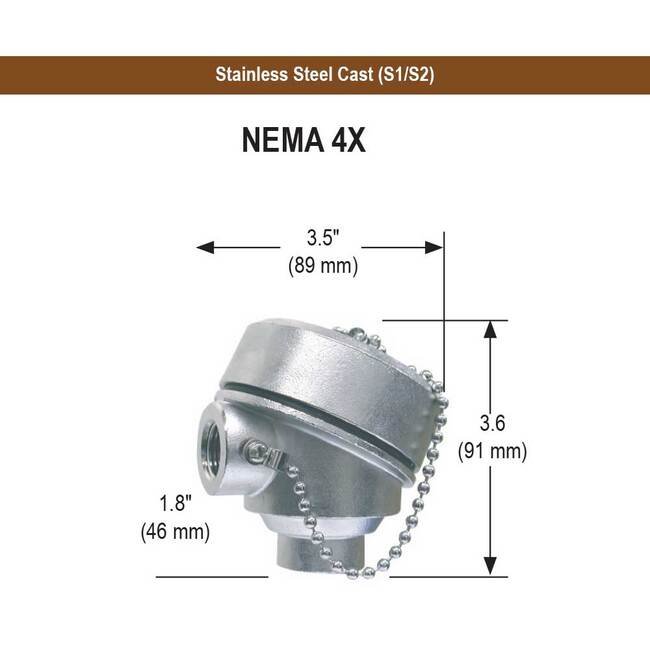

Options And Accessories Resistance Temperature Device Rtd Connec
Screw coverMeet NEMA requirements for indoor or outdoor use providing protection against dust, rain, splashing and hose-directed waterEasy access, one-turn capsAccept standard and DIN terminal blocks and transmittersProvide greater volume for ease of field wiring

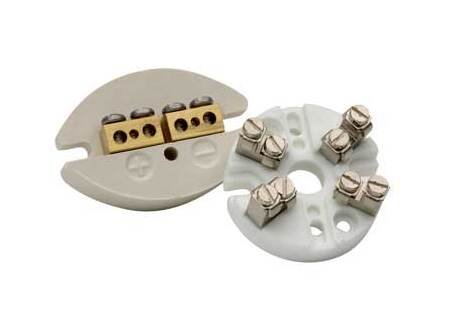

Options And Accessories Resistance Temperature Device Rtd Termin
Provided with a steatite ceramic base, brass terminal pieces, and stainless steel screwsNot rated for high voltage useCan be used in temperature sensor or low voltage Class 2 circuits

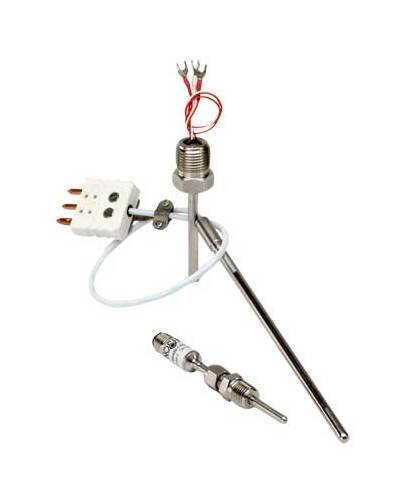

Options And Accessories Resistance Temperature Device Rtd Transm
NOSHOK's Probe Type Industrial RTD is available with a variety of fitting sizes and probe diameters.

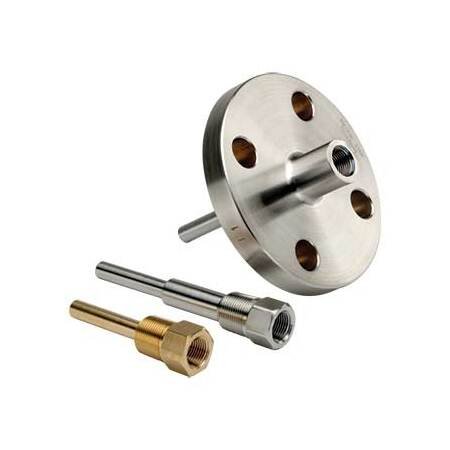

Options And Accessories Thermowells
Thermowells allow a temperature instrument to be removed and replaced without shutting down and draining the process, and reduce the possibility of damage to the temperature instrument.
Prop 65 Warnings Prop 65 Warnings
WARNING: This product can expose you to chemicals including Lead and Nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Specifications Accuracy
±0.12% (±0.3 ºC) at 0 ºC, Class B
Specifications Circuit Types
Single, 3-Wire
Specifications Connection Size
1/2 in
Specifications Connection Type
Male National Pipe Thread (MNPT)
Specifications Electrical Connection
Connection Head with 1/2 " National Pipe Thread (NPT) Conduit
Specifications Electrical Connection Materials
Stainless Steel Cast
Specifications Element Types
PT100 Ω at 0 ºC
Specifications Environmental Protection
A1/A2:National Electrical Manufacturers Association (NEMA) 4P1 & S1/S2:National Electrical Manufacturers Association (NEMA) 4X
Specifications Insulation Resistance
Single Element Probes: 100 mega Ω/m" at 500 Vdc, Leads to CaseDual Element Probes: 100 mega Ω/m" at 100 Vdc, Between Element and Leads to Case
Specifications Lead Wires
Stranded 22 AWG standard, Polyvinyl Chloride (PVC) or Polytetrafluoroethylene (PTFE) Insulation
Specifications Optional Transmitteroutput
4 to 20 mA, 2-Wire, Upscale Burnout
Specifications Pressure Ratings For Tube
500 psi | 34.5 bar
Specifications Resistance Temperature Device Rtd Element
PT100 Ω at 32 ºF (0 ºC), α=0.00385 International Electrotechnical Commission (IEC 751)
Specifications Self Heating
50 mW / ºC Typical in Moving Water
Specifications Series
915
Specifications Standard Finish Max
32 µin
Specifications Stem Diameters
1/4 in
Specifications Stem Lengths
2.5 in
Specifications Temperature Ranges Max
400 ºF
Specifications Temperature Ranges Min
-50 ºF
Specifications Transition
Sheath to Wire Transition Maximum Temperature 266 ºF (130 ºC)
Specifications Type
Probe with Connection Head
Specifications Warranty
3 y
Specifications Wetted Materials
316 Stainless Steel
