NuPower™ 13G05A Power Amplifier
NuPower™ 13G05A Power Amplifier
SKU:NUP-348441
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
NuPower™ 13G05A Power Amplifier
$49.99
Quantity: 1
Claim Your Seller Account
NuPower™ 13G05A Power Amplifier
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

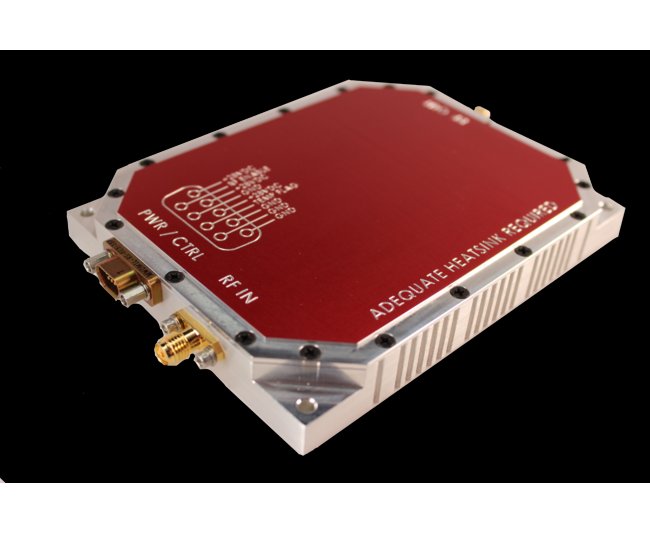

The NuPower™ 13G05A L-Band Power Amplifier is a small, ultra-high-efficiency solid-state power amplifier module for CW operation that delivers, on average, 50 watts of RF power from 800 MHz to 2 GHz, to boost signal power levels of data links and transmitters for communications range extension, electronic warfare (e.g. electronic attack), etc. With a minimum of 45 dB of RF gain, the NuPower 13G05A module is configured for an input drive level of 0 dBm from the transmitter/transceiver. Based on state-of-the-art Gallium Nitride (GaN) device technology, the NuPower 13G05A provides a compelling option for size, weight and power (SWaP) constrained RF telemetry and military communication systems given its 9.6 cubic inch, 9 ounce enclosure and ~50% DC power efficiency. What’s more, the NuPower 13G05A is also operational from 2.0 GHz to 2.5 GHz at lower power levels. All NuPower PAs come standard with a Micro-D cable assembly with 18″ flying leads for interfacing to the unit. Also available is an accessory kit which includes a 28 VDC fan-cooled heat sink and an upgraded interface cable with banana plug terminations for lab testing.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Export Classification
EAR99
Specifications Gain Typ
47 dB
Specifications Input Drive
0 dBM
Specifications Input Supply
27 - 30
Specifications Maximum Frequency
2000 MHz
Specifications Minimum Frequency
800 MHz
Specifications Output Power Typ
50 W
Specifications Rf Connector Options
SMA
Specifications Size Lx W X H
4.50 x 3.50 x 0.61 Inch
Specifications Weight
9 oz
