NuPower™ C20R01 Power Amplifier
NuPower™ C20R01 Power Amplifier
SKU:NUP-71220d
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
NuPower™ C20R01 Power Amplifier
$49.99
Quantity: 1
Claim Your Seller Account
NuPower™ C20R01 Power Amplifier
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

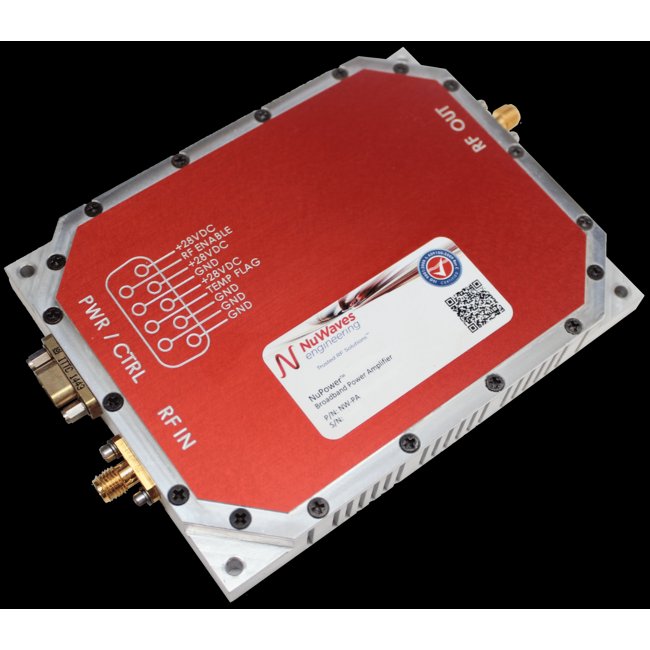

The NuPower™ C20R01 C-Band Power Amplifier is a small, broadband, high performance, solid state power amplifier that delivers over 20 watts of RF power from 4.4 to 4.9 GHz, to boost signal power levels of data links and transmitters for communications range extension, electronic warfare (e.g. electronic attack), etc. The NuPower C20R01 accepts a nominal 0 dBm (1 mW) RF input and provides 43 dB of gain from 4.4 GHz to 4.9 GHz for continuous wave (CW) and near-constant-envelope waveforms. Based on the latest gallium nitride (GaN) technology, the NuPower C20R01’s 15% – 30% power efficiency and NuPower PAs feature over-voltage protection and can operate over a wide temperature range of -40 °C to +60 °C (baseplate). All NuPower PAs come standard with a Micro-D cable assembly with 18″ flying leads for interfacing to the unit. Also available is an accessory kit which includes a 28 VDC fan-cooled heat sink with requisite power cable, and an upgraded module interface cable with banana plug terminations for lab testing.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Export Classification
ECCN 5A991.G
Specifications Gain Typ
43 dB
Specifications Input Drive
0 dBM
Specifications Input Supply
27 - 32
Specifications Maximum Frequency
4900 MHz
Specifications Minimum Frequency
4400 MHz
Specifications Output Power Typ
20 W
Specifications Rf Connector Options
SMA
Specifications Size Lx W X H
4.50 x 3.50 x 0.61 Inch
Specifications Weight
9 oz
