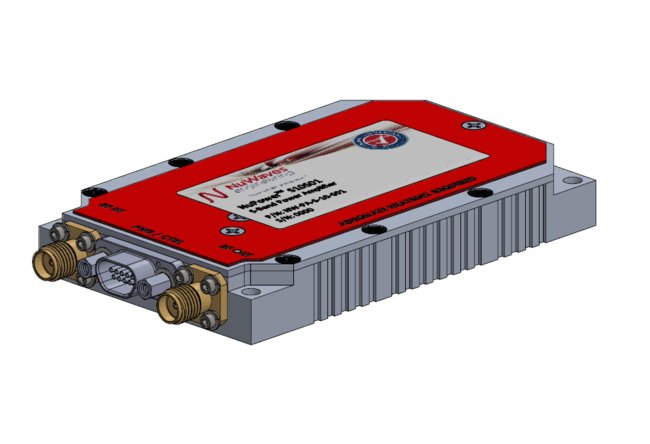

NuPower™ S-10-C01-S01 Power Amplifier
NuPower™ S-10-C01-S01 Power Amplifier
SKU:NUP-6be4a3
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
NuPower™ S-10-C01-S01 Power Amplifier
$49.99
Quantity: 1
Claim Your Seller Account
NuPower™ S-10-C01-S01 Power Amplifier
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The NuPower™ S-10-C01-S01 is a small, highly efficient solid state power amplifier that provides 10 watts (typ) of RF power to boost performance of data links and transmitters. The NuPower™ S-10-C01-S01 is a small, highly efficient, S-Band, solid state power amplifier that provides 10 watts (typ) of RF power to boost performance of data links and transmitters. Based on the latest gallium nitride (GaN) technology, NuPower’s 30% – 50% power efficiency and 3.25 in3 form factor make it ideal for size, weight, and power-constrained broadband RF telemetry and tactical communication systems. The NuPower S10S01 power amplifier accepts a nominal -5 dBm RF input and provides over 44 dB of gain from 3.0 GHz to 4.0 GHz. The NuPower S10S01 module comes standard with a NW-PA-ACC-CB09MA interface cable, for ease of integration. NuPower PAs feature over-voltage and reverse-voltage protection and can operate over a wide temperature range of -30 °C to +60 °C.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Export Classification
EAR99
Specifications Gain Typ
44 dB
Specifications Input Drive
-5 dBM
Specifications Input Supply
11 - 32
Specifications Maximum Frequency
4000 MHz
Specifications Minimum Frequency
3000 MHz
Specifications Output Power Typ
10 W
Specifications Rf Connector Options
SMA
Specifications Size Lx W X H
3.25 x 2.0 x 0.5 Inch
Specifications Weight
3 oz
