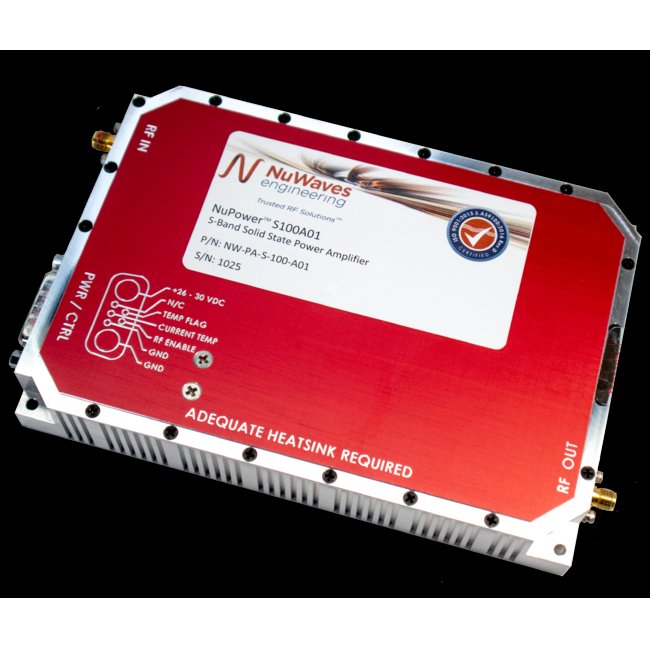

The NuPower™ S100A01 S-Band Power Amplifier is a small, ultra-high-power solid-state power amplifier module for CW operation that delivers a minimum of 100 watts of RF power from 2000 MHz to 2500 MHz to boost signal power levels of data links and transmitters for communications range extension, electronic warfare (e.g. electronic attack),etc. With 20 dB of RF gain, the NuPower S100A01 module is configured for an input drive level of +30 dBm from the transmitter/transceiver. Based on state-of-the-art Gallium Nitride (GaN) device technology, the NuPower S100A01 provides a compelling option for size, weight and power (SWaP) constrained RF telemetry and military communication systems given its 29 cubic inch, 22.6 ounce enclosure and 45% DC power efficiency. All NuPower PAs come standard with a Micro-D cable assembly with 18″ flying leads for interfacing to the unit. Also available is an accessory kit which includes a 28 VDC fan-cooled heat sink with requisite power cable, and an upgraded module interface cable with banana plug terminations for lab testing.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Export Classification
EAR99
Specifications Gain Typ
21 dB
Specifications Input Drive
30 dBM
Specifications Input Supply
26 - 32
Specifications Maximum Frequency
2500 MHz
Specifications Minimum Frequency
2000 MHz
Specifications Output Power Typ
125 W
Specifications Rf Connector Options
SMA
Specifications Size Lx W X H
6.50 x 4.50 x 1.0 Inch
Specifications Weight
24 oz
