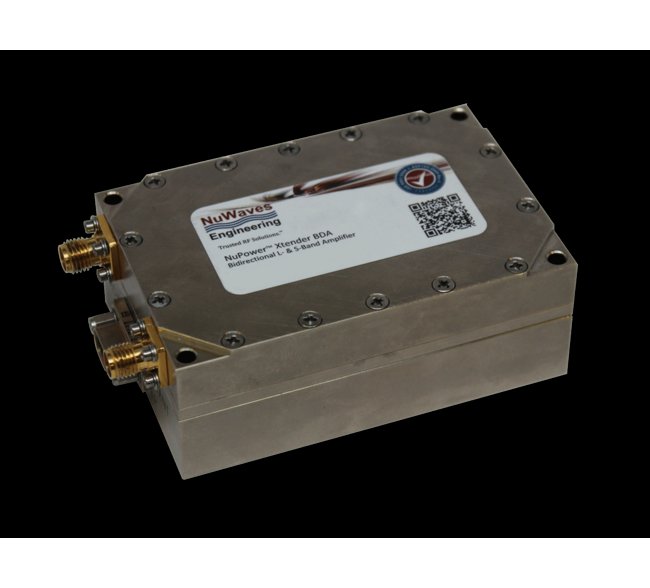

The NuPower Xtender™ 12B04A-07-C030 L- & S-Band Bidirectional Amplifier module is a small, broadband, high-performance RF amplifier that provides 15 watts of RF output power from 1625 to 2500 MHz. The NuPower Xtender™ 12B04A-07-C030 is a small, lightweight, and power-efficient bidirectional amplifier ideal for extending the communication range of half-duplex L- or S-band transceivers running constant-envelope or near-constant-envelope waveforms. The bidirectional amplifier generates 15 Watts (typ) of RF power from 1625 to 2500 MHz in transmit mode and the integrated low-noise amplifier provides a minimum of 19 dB of gain (typ) in receive mode. Based on the latest gallium nitride (GaN) technology, the Xtender offers greater than 30% power efficiency at most frequencies and its compact size makes it ideal for integration into space-constrained platforms. Accepting a +5 dBm RF input, the Xtender provides 37 dB of gain. The Xtender also features overvoltage and reverse-voltage protection and operates over a wide temperature range of -30 to +60 °C. Extend your operational communication range with NuPower™ amplifiers from NuWaves Engineering.
Product Specifications
Specifications Export Classification
EAR99
Specifications Gain Typ
37 dB
Specifications Input Drive
5 dBM
Specifications Input Supply
11 - 32
Specifications Maximum Frequency
2500 MHz
Specifications Minimum Frequency
1625 MHz
Specifications Output Power Typ
15 W
Specifications Rf Connector Options
SMA
Specifications Size Lx W X H
3.00 x 2.00 x 1.16 Inch
Specifications Weight
5.8 oz
