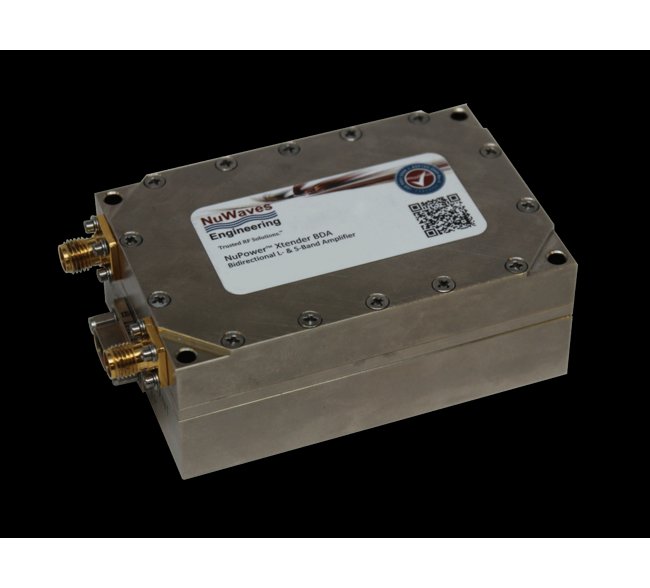

NuPower Xtender™ 12B04A-D27 Bidirectional Amplifier
NuPower Xtender™ 12B04A-D27 Bidirectional Amplifier
SKU:NUP-b1b1c8
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
NuPower Xtender™ 12B04A-D27 Bidirectional Amplifier
$49.99
Quantity: 1
Claim Your Seller Account
NuPower Xtender™ 12B04A-D27 Bidirectional Amplifier
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The NuPower Xtender™ 12B04A-D27 Bidirectional L- & S-Band Amplifier module is a small, broadband, high-performance RF amplifier that generates 20 watts of RF power across the L- and S-band frequencies of 1.0 to 2.5 GHz. The NuPower XtenderTM 12B04A-D27 is a small, lightweight, and power-efficient bidirectional amplifier ideal for extending the communication range of half-duplex S-band transceivers running constant-envelope or near-constant-envelope waveforms. The bidirectional amplifier generates 20 Watts CW (typ) of RF power from 1000 to 2500 MHz in transmit mode and the integrated low-noise amplifier provides a minimum of 14 dB (typ) of gain in receive mode. Based on the latest gallium nitride (GaN) technology, the Xtender offers 30% power efficiency (typical) within a small form factor making it ideal for integration into space-constrained platforms. Accepting a +27 dBm RF input, the Xtender provides more than 15 dB of transmit gain. The Xtender also features over-voltage and reverse-voltage protection and operates over a wide temperature range of -30 to +60 °C.
Product Specifications
Specifications Export Classification
EAR99
Specifications Gain Typ
15 dB
Specifications Input Drive
27 dBM
Specifications Input Supply
11 - 32
Specifications Maximum Frequency
2500 MHz
Specifications Minimum Frequency
1000 MHz
Specifications Output Power Typ
20 W
Specifications Rf Connector Options
SMA
Specifications Size Lx W X H
3.00 x 2.00 x 1.16 Inch
Specifications Weight
5.8 oz
