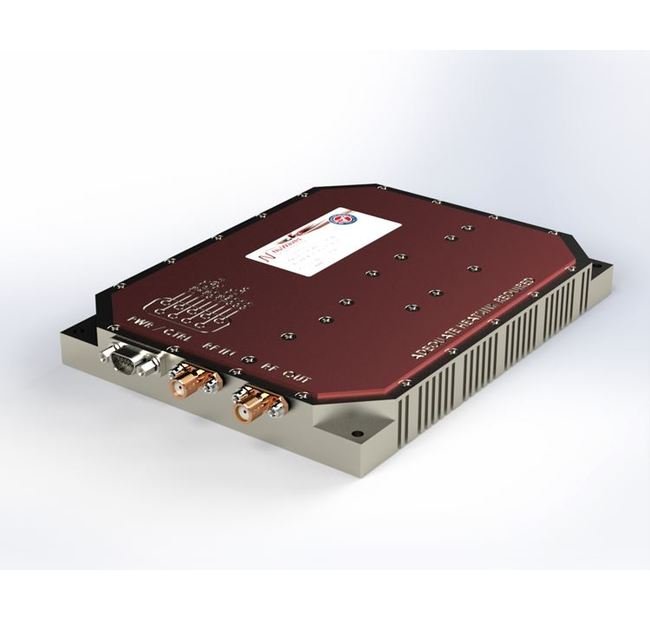

The NuPower Xtender™ C15RX01-C044 is a small, highly efficient, solid state bidirectional amplifier (BDA) that provides 15 watts of RF power (3 W linear) across the 5030 to 5091 MHz frequency range to boost performance of data links and transmitters. The NuPower Xtender™ C15RX01-C044 accepts a nominal 0 dBm (1mW) RF input and provides 40 dB of gain from 5030 to 5091 MHz for continuous wave (CW) and near-constant envelope waveforms. Based on the latest gallium nitride (GaN) technology, the NuPower Xtender™ C15RX01-C044’s power efficiency and form factor make it ideal for size, weight, and power-constrained broadband RF telemetry, tactical communication systems, and electronic warfare systems.
Product Specifications
Specifications Export Classification
EAR99
Specifications Gain Typ
40 dB
Specifications Input Drive
0 dBM
Specifications Input Supply
27 - 32
Specifications Maximum Frequency
5091 MHz
Specifications Minimum Frequency
5030 MHz
Specifications Output Power Typ
15 W
Specifications Rf Connector Options
SMA
Specifications Size Lx W X H
5.50 x 4.25 x 0.68 Inch
Specifications Weight
10.5 oz
