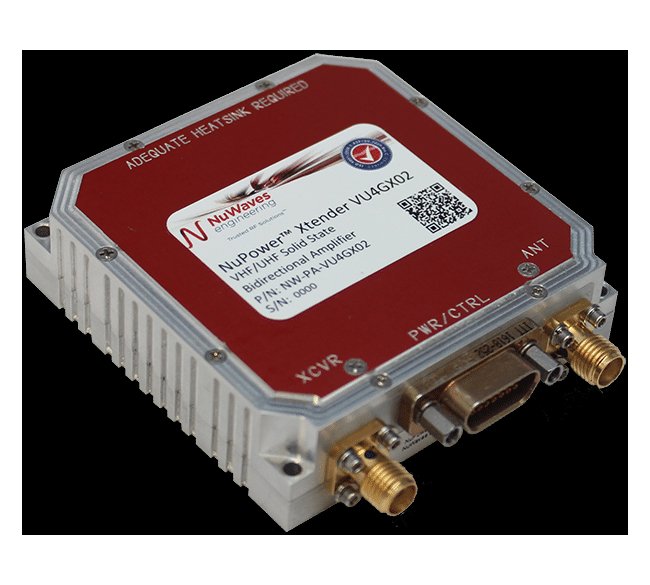

The NuPower Xtender™ VU4GX02-C101 is a highly efficient, miniature solid-state amplifier with receive pass-through that provides 12 watts at nominal input drive (typical) and 16 watts of linear RF power across the 225 MHz to 450 MHz frequency range. This BDA is ideal for extending the communication range of half-duplex transceivers running constant envelope waveforms such as FM, BPSK, and GMSK, as well as high peak-to-average waveforms such as OFDM. The efficiency and compact form factor of the NuPower XtenderTM VU4GX02-C101 BDA makes it ideal for size, weight, and power-constrained RF telemetry and tactical communication systems. This solid-state BDA features a compact form factor, allowing the system integrator to easily incorporate the unit into the communications payload of small unmanned aircraft systems (UAS) or other small platforms.
Product Specifications
Specifications Export Classification
EAR99
Specifications Gain Typ
51 dB
Specifications Input Drive
-10 dBM
Specifications Input Supply
10 - 32
Specifications Maximum Frequency
450 MHz
Specifications Minimum Frequency
225 MHz
Specifications Output Power Typ
12 W
Specifications Rf Connector Options
SMA
Specifications Size Lx W X H
2.34 x 2.34 x 0.7 Inch
Specifications Weight
2.4 oz
